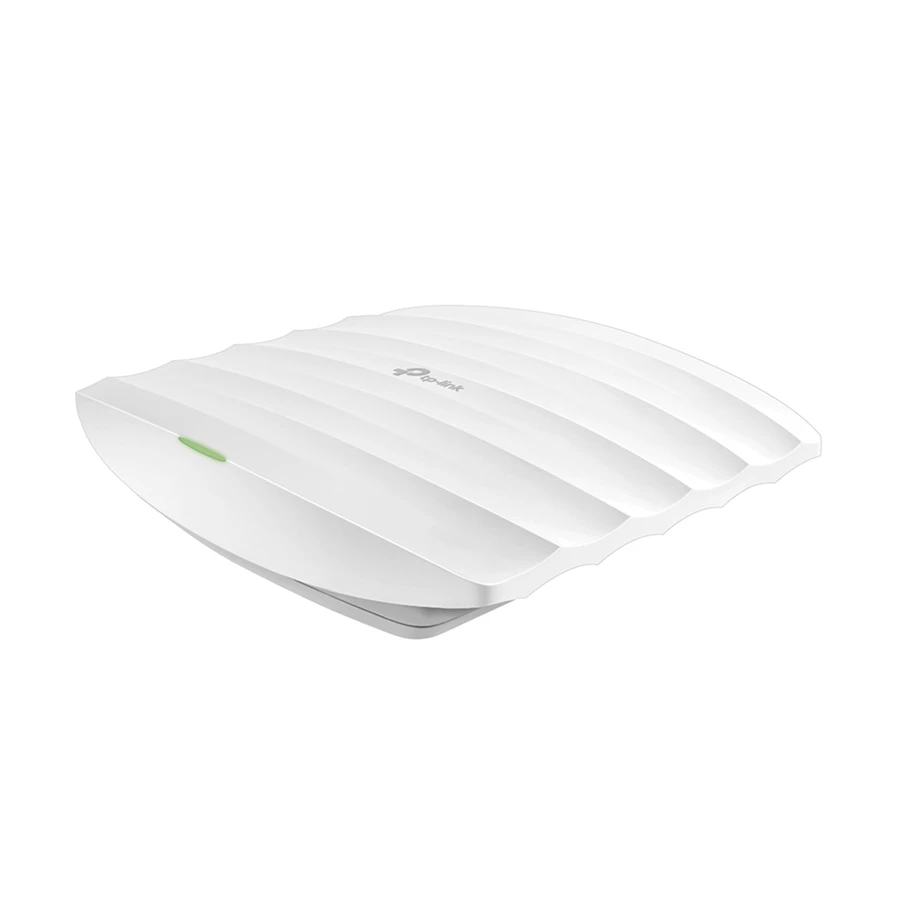

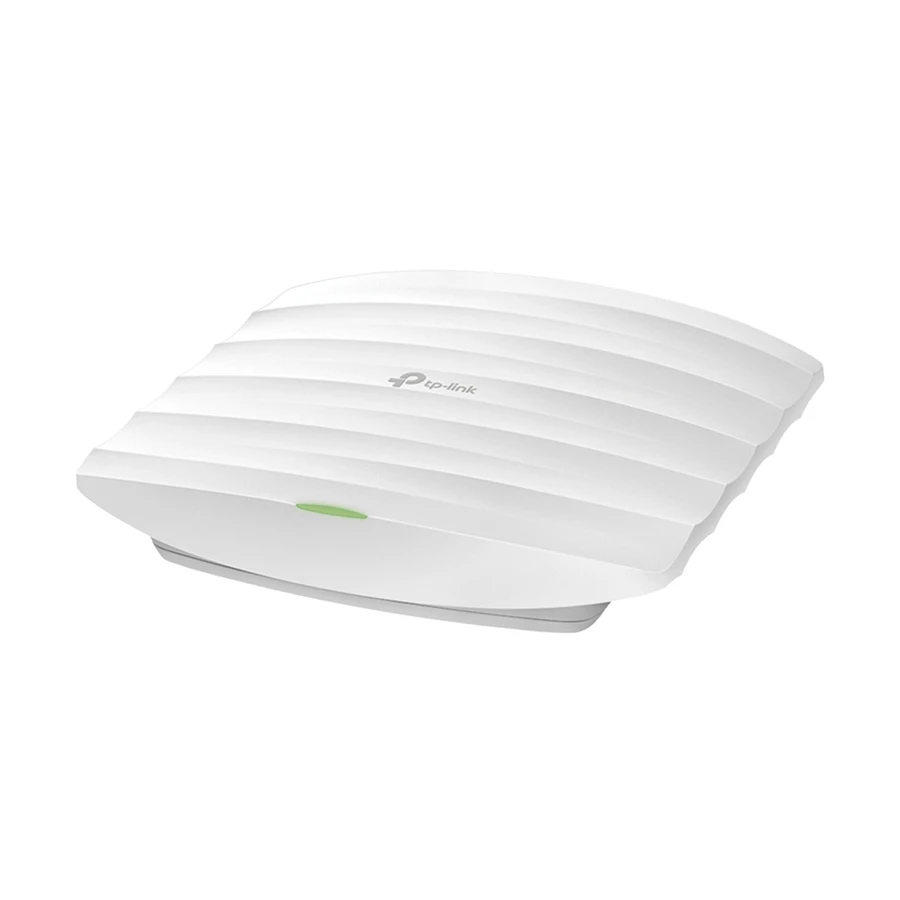

TP-Link Omada EAP223 AC1350 Mbps Kablosuz Çift Bant Tavan Montajlı Erişim Noktası

Ürün Kimliği: X29.02.091.01

Özel Fiyat
TL 2.024

Save Extra TL 101 on online order

Hızlı Genel Bakış

Network Standards - IEEE 802.11ac/n/g/b/a
Data Transfer Rates - 1350 Mbps
Band - Dual

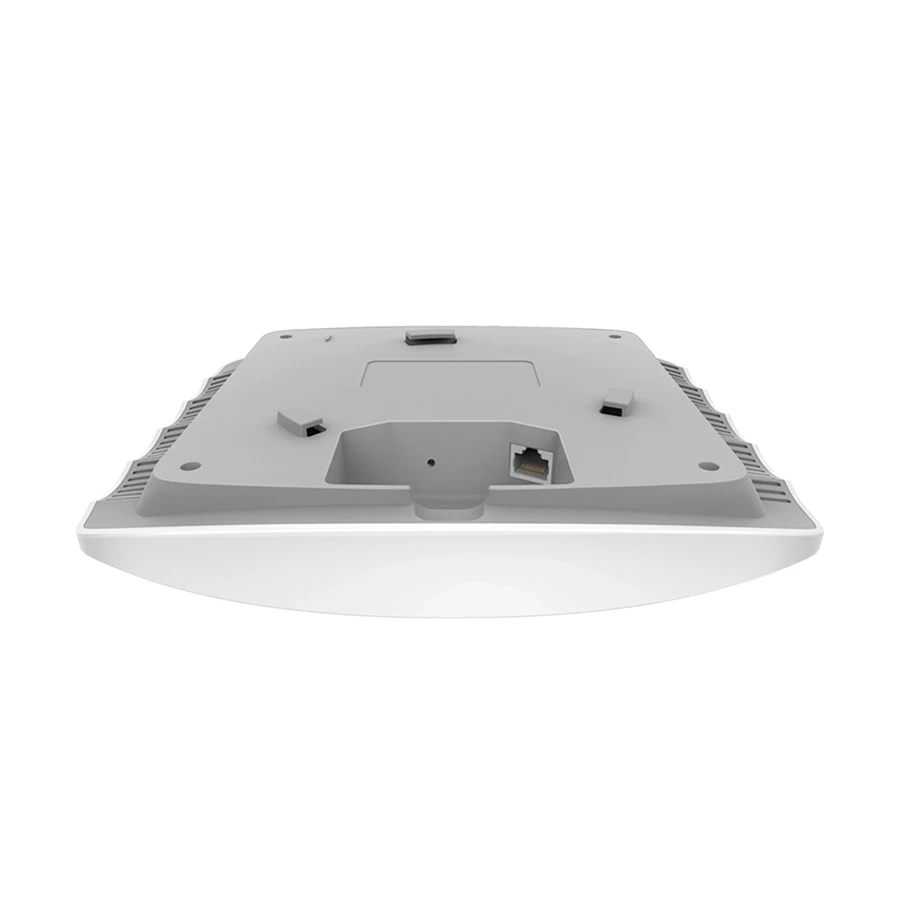

Interface(s) - 1 x RJ-45 Gigabit Ethernet (compatible con IEEE802.3af/at PoE y PoE pasivo)
Antenna (Type & Qty) - 3 x Internal
Color - White

Marka

TP-Link

Model

TP-Link Omada EAP223

Ağ Standartları

IEEE 802.11ac/n/g/b/a

Veri Aktarım Hızları

1350 Mbps

Bant

Çift

Arayüz(ler)

1 x RJ-45 Gigabit Ethernet (compatible con IEEE802.3af/at PoE y PoE pasivo)

WAN Port Sayısı

LAN Port Sayısı

HAYIR

Bluetooth

Anten (Tipi ve Adeti)

3 x Internal

MU-MIMO Desteği

Yes

Maksimum Güç Tüketimi

9.7W - 12.1W

Montaj

Yes

Renk

Beyaz

Boyutlar

205.5 x 181.5 x 37.1mm (W x D x H)

Garanti Detayları

Duyurulacak

General

Marka

TP-Link

Model

TP-Link Omada EAP223

Hardware

Ağ Standartları

IEEE 802.11ac/n/g/b/a

Data Transfer Rates

1350 Mbps

WAN Network Standard

10/100/1000

Interface

Arayüz(ler)

1 x RJ-45 Gigabit Ethernet (compatible con IEEE802.3af/at PoE y PoE pasivo)

Number of WAN Port

Number of LAN Port

Wireless

Bant

Çift

Frequency

2.4GHz, 5 GHz

Bluetooth

Antenna (Type & Qty)

3 x Internal

Antenna Gain

2,4 GHz: 4 dBi, 5 GHz: 5 dBi

Antenna Placement

Internal

MU-MIMO Support

Yes

Transmission Power

CE: <=20 dBm(2.4 GHz, EIRP), <=23 dBm(5 GHz, EIRP). FCC: <=24 dBm(2.4 GHz), <=22 dBm(5 GHz).

Management

SSID Numaraları

Up to 15 SSIDs (8 for the 2.4 GHz band, 7 for the 5 GHz band)

Web-Based Management

HTTP/HTTPS

Multi-Site Management

Yes

Management MAC Access Control

Yes

Performance

E-posta Bildirimleri

Yes

Technical Info

Sistem Gereksinimleri

Windows XP, Vista, 7, 8, 10, 11. Linux

Security

Kablosuz Güvenlik

Captive portal authentication, Access control, Wireless MAC address filtering, Wireless isolation between clients, SSID to VLAN mapping, Rogue access point detection, 802.1X support.

Physical Security Lock

Yes

Electrical

Maksimum Güç Tüketimi

9.7W - 12.1W

Passive PoE Power Supply

802.3af/en PoE, 48V Passive PoE (+4,5 pins; -7,8 pins. PoE adapter NOT included)

Environmental

Çalışma Sıcaklığı

0 - 40 Degree C

Operating Humidity

10–90% RH non-condensing

Storing/Storage Temperature

-40 - 70 Degree C

Storing/Storage Humidity

5 - 90% RH non-condensing

Physical Description

Düğme

Reset

Mounting

Yes

Mount Options

Ceiling/Wall Mounting

Dimensions

205.5 x 181.5 x 37.1mm (W x D x H)

Color

White

Packet Contents

AC1350 EAP223 Wireless Gigabit MU-MIMO Ceiling Mount Access Point, Mounting Kits, Installation Guide.

Warranty

Garanti Detayları

Duyurulacak

Additional Info

Diğerleri

Antenna: 3 omnidirectional. Signal rate: 5 GHz: up to 867 Mbps, 2.4 GHz: up to 450 Mbps. Wireless features: Multiple SSIDs (up to 15 SSIDs, 8 for the 2.4 GHz band, 7 for the 5 GHz band). Enable/Disable Wireless Radio. Automatic Channel Assignment. Transmit Power Control (Transmit Power Adjustment in dBm). QoS (WMM). Seamless Roaming. Omada Mesh. Band Steering. Load Balancing. MU-MIMO. Airtime Fairness. Beamforming. Rate Capping. Reset Schedule. Wireless Schedule. Wireless Statistics based on SSID/AP/Client. LED ON/OFF Control. SNMP v1,v2c. Local/Remote Syslog System Log: Syslog local/remote. SSH: Yes. L3 Management. management VLAN. Non-intervention provisioning: Yes. It requires the use of Omada's cloud-based controller. Certification: CE, FCC, RoHS.

Specialty

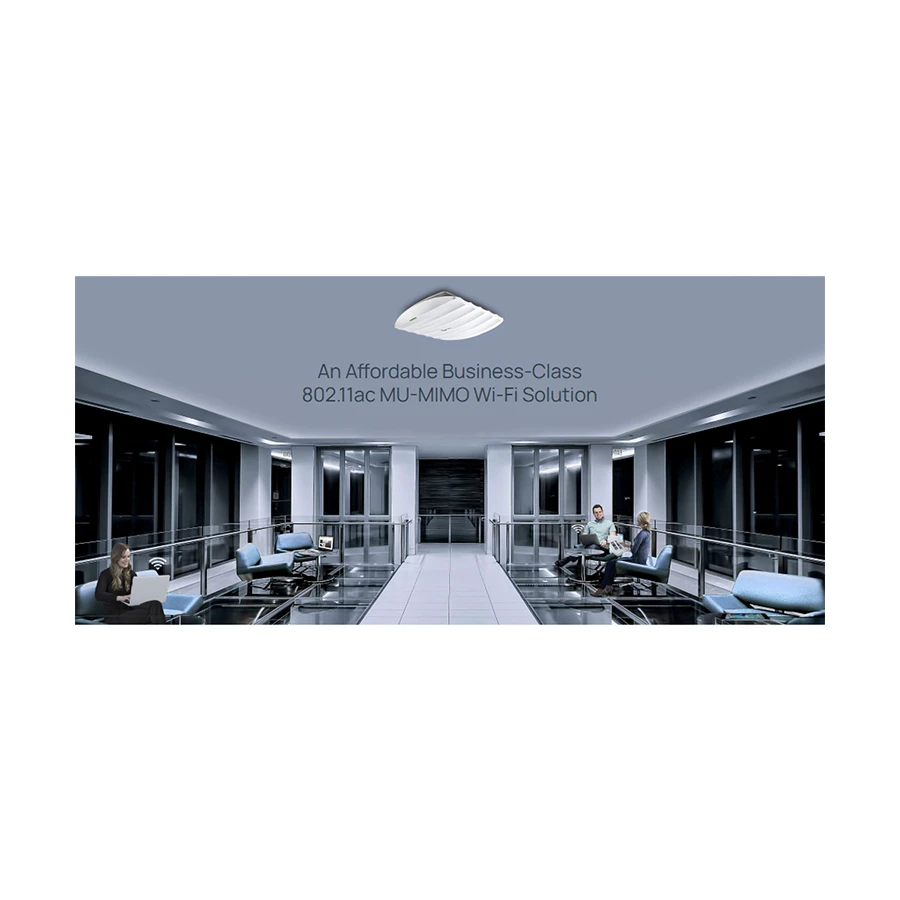

Fast Dual-Band Wi-Fi : Simultaneous 450 Mbps on 2.4 GHz and 867 Mbps on 5 GHz total 1317 Mbps Wi-Fi speeds. Seamless Roaming : Even video streams and voice calls are unaffected as users move between locations. PoE Support : Support both standard 802.3af/at and Passive PoE (PoE adapter is not included) for flexible installations. Secure Guest Network : Along with multiple authentication options (SMS/Voucher, etc.) and abundant wireless security technologies. Advanced Wireless Tech : Optimize network performance with MU-MIMO, Band Steering, Airtime Fairness and Beamforming technologies. An Affordable Business-Class 802.11ac MU-MIMO Wi-Fi Solution.

Detaylar

Features of TP-Link Omada EAP223 Access Point In Turkey

What is the price of TP-Link Omada EAP223 Access Point In Turkey?

The price of TP-Link Omada EAP223 Access Point starts from 2,024 . The price may vary due to your customization and product availability. You can buy TP-Link Omada EAP223 Access Point from our website or visit our showrooms nearby.
Looking to purchase office, corporate, or institutional equipment? RYANS TEKNOLOJI is here to help. We provide customized solutions tailored to your needs, backed by fast delivery and dependable after-sales service. Our expert Ryans Care team is always ready to support you with troubleshooting, technical assistance, and configuration services—so you can focus on what matters most.
