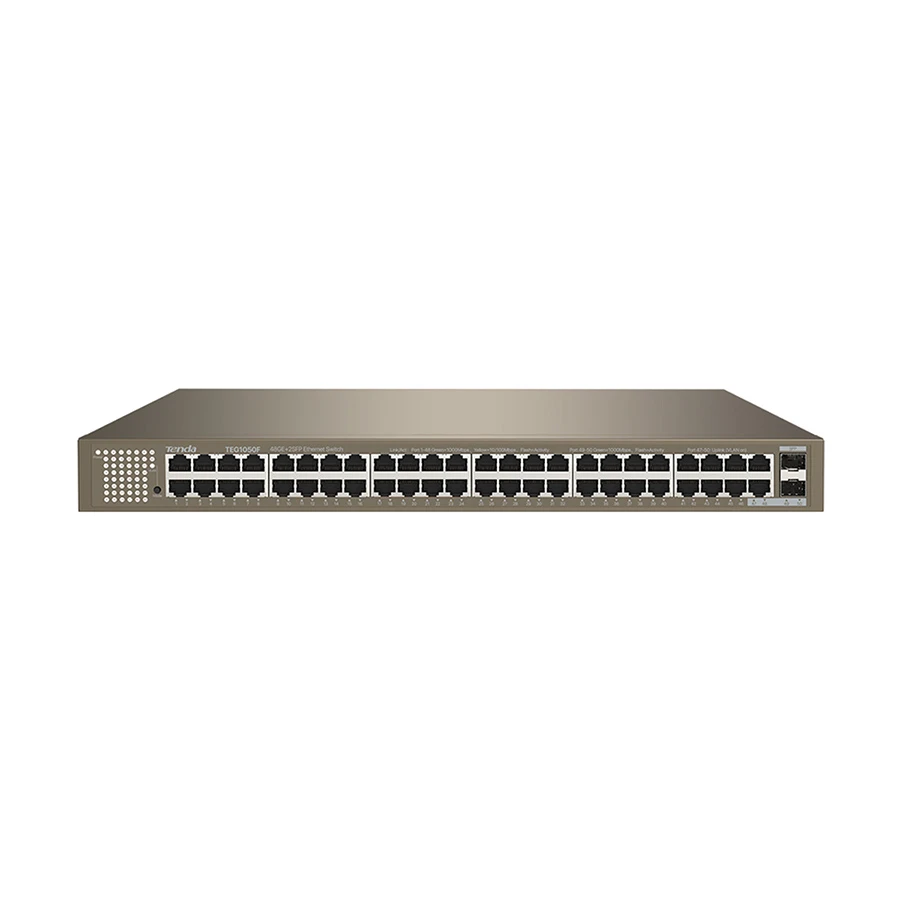

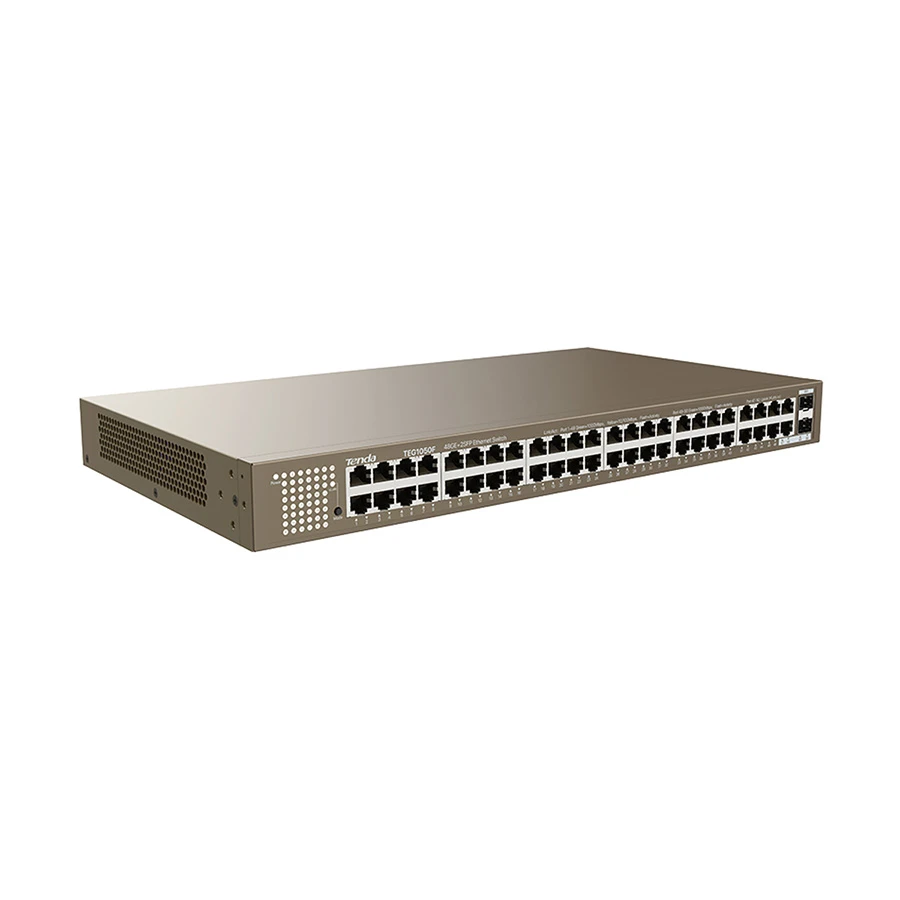

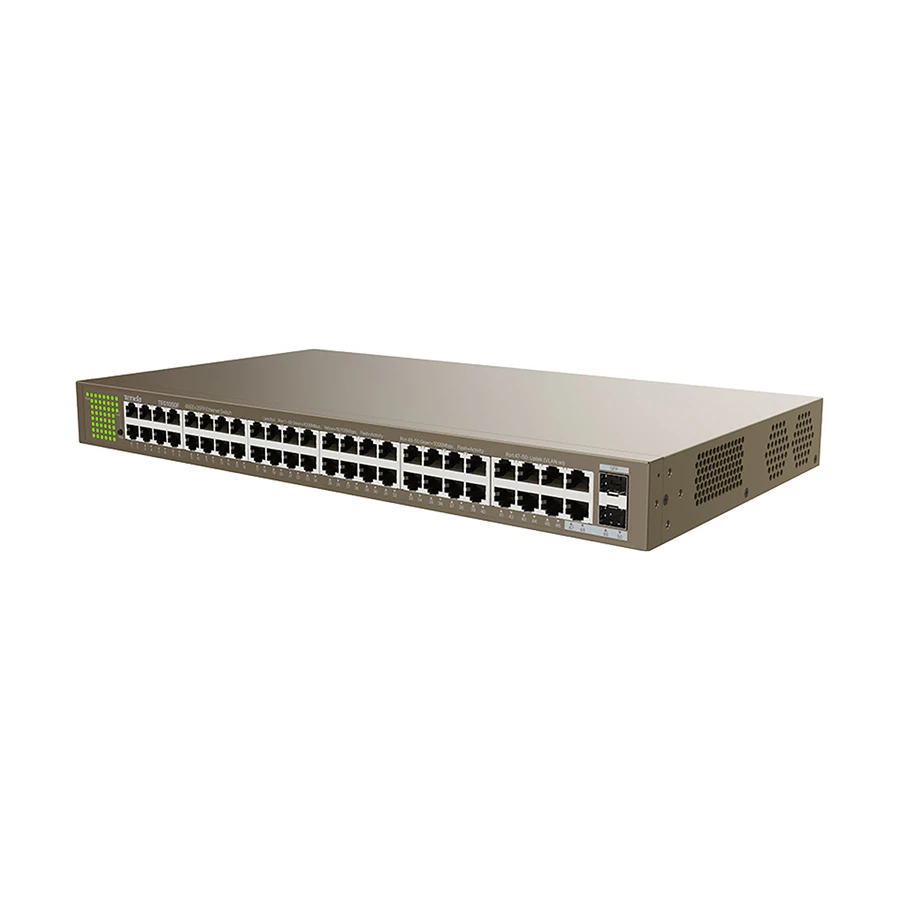

Tenda TEG1050F 50 Bağlantı Noktalı Yönetimsiz Gigabit Anahtar

Ürün Kimliği: 29.05.744.50

Brand Tenda

Özel Fiyat
13.410 TL

Hızlı Genel Bakış

  • Tip - Network Switch
  • Toplam Liman Sayısı - 50 Port
  • PoE - HAYIR
  • Yönetilebilirlik - Yönetilmeyen
  • Ağ Standartları - IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
  • Veri Aktarım Hızı - 10/100/1000 Mbps
  • Vücut Rengi - Gray
  • Şekil Faktörü - Desktop/Rackmount/Wall Mounting
Genel
Marka
Tenda

Model
Tenda TEG1050F

Tip
Network Switch


Bağlantı Noktaları ve Yuvalar
Toplam Liman Sayısı
50 Port

Gigabit Bağlantı Noktası
50

SFP Bağlantı Noktası
2

PoE Port
No

PoE+ Bağlantı Noktası
No


Teknik Bilgiler
PoE
HAYIR

Yönetilebilirlik
Yönetilmeyen

Arayüz(ler)
48 x 10/100/1000 Base-T Ethernet ports (Auto MDI/MDIX), 2 x 1000 Base-X SFP ports (Independent)

Ağ Standartları
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z

Veri Aktarım Hızı
10/100/1000 Mbps

İletim Yöntemi
Store-and-forward

Anahtarlama Kapasitesi
100Gbps


Fiziksel Özellikler
Göstergeler
1 x Power, 50 x Link/Act, 1 x VLAN

Gövde Malzemesi
Metal

Vücut Rengi
Gray

Şekil Faktörü
Desktop/Rackmount/Wall Mounting

Boyut
440 x 240 x 44mm


Güç
Güç Kaynağı
Input: 100 - 240V AC 50/60Hz, Output: 12V 4A

Yaklaşık Güç Tüketimi
<48W (Max)


Garanti
Garanti Detayları
1 Yıl (Adaptörsüz)


Additional Info
Diğerleri
Transmission media: ecommended: CAT5/5e UTP or better, Level of protection: Lightning protection for uplink ports: 6KV, Lightning protection for power: 6KV, ESD: Air discharge: -/+10kV, Contact discharge: -/+8kV, Forwarding rate: 74.4Mpps, Buffer: 12Mb, MAC address table: 16K, Operating temperature: 0 Degree C - 45 Degree C, Storage temperature: -40 Degree C - 70 Degree C, Operating humidity: (10% - 90%) RH, non-condensing, Storage humidity: (5% - 90%) RH, non-condensing, Certifications: CE, FCC, RoHS, Funtions: One-key VLAN (In this mode, ports 1 to 46 cannot communicate with each other, but can communicate with ports 47 to 50.), Jumbo frame: 12K, Protocols: CDMA/CD, MAC address learning: Auto-Learning and Auto-Aging.

Uzmanlık
Developed by Tenda, TEG1050F is a Gigabit unmanaged Ethernet switch designed for establishing wired networks of high density and high speed in such scenarios as enterprises, parks, schools, and internet cafes, providing a simple, easy, cost-effective, and rapid internet access solution for video surveillance and SMBs` networking. With 48 10/100/1000 Mbps RJ45 ports, and 2 independent Gigabit SFP slots that can be paired with Tenda`s SFP modules, this switch can be used to deploy a long-distance network up to 20 km. Its full-duplex transmission rate can reach 2000 Mbps, ensuring the timely transmission of large files and smoothness of videos. Its one-key VLAN function can isolate broadcast storms. Its integrated professional lightning protection circuit offers 6 kV lightning protection for the built-in power supply and all Ethernet ports, ensuring the stability and reliability of the switch. The switch supports desktop mounting, rack mounting and wall mounting, and features a 1U 19-inch standard rack-mount shell design and plug & play function. With these advantages, it is an ideal choice for deploying a cost-effective and high-speed network.

Menşei ülke
Çin

Üretim yeri/Montaj yeri
Çin


N.B. Görsel, ürünün gerçek düzeni, rengi, boyutu ve ölçülerinden farklılık gösterebilir. Görsel uyumsuzluğu nedeniyle herhangi bir talep kabul edilmeyecektir. Bu web sitesinde kullanılan ürün verileri yalnızca üretici tarafından sağlanan bilgilere dayanmaktadır; orijinalliği ve doğruluğu yalnızca üreticinin sorumluluğundadır.
