3 x M.2 (M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices, M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices, M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices)
M.2/SSD Slot Gen
Up to Gen 5
Graphics
Graphics
Integrated
Graphics Chipset
Integrated With Processor
Multi-GPU Support
No
PCI Express Slot
2x PCI-E x16 slot, 1x PCI-E x1 slot
Audio & Video
Audio Chipset
Realtek ALC897 Codec
Audio Channel
7.1
Network & Connectivity
LAN Chipset
Intel Killer E5000 5Gbps LAN
LAN Speed (Mbps)
10/ 100/ 1000/ 2500/ 5000Mbps
WiFi
Yes
WiFi Technology
Intel Killer BE1750x Wi-Fi 7
Bluetooth
Bluetooth 5.4
Ports
USB Port
4 x USB 2.0 Type-A, 4 x USB 10Gbps Type-A, 1 x USB 10Gbps Type-C, 1 x Thunderbolt 4 40Gbps (Type-C)
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
1
SATA Port
4x SATA
Thunderbolt
1
TPM Port
1
Technical Info
Back-Connect Design
No
Cable Management
Front
Heatsink
Yes
CrossFire Support
No
Sli Support
No
Raid Support
0, 1, 5, 10
RGB Support
ARGB
RGB Connector
3x Addressable V2 RGB LED connector (JARGB_V2), 2x RGB LED connector(JRGB)
Approx. Power Consumption
70W
Form Factor
ATX
Compatibility
Supported Operating System
Windows 11
Compatible Products
Compatible with LGA1851 Sockets Intel Core Ultra Processors (Series 2)
Warranty
Warranty Details
3 year
Additional Info
Feature
EZ PCIe Release: A simple press of a button to effortlessly lock or unlock the PCIe slot, simplifying the installation and removal of the graphics card. Extended Heatsink Design: MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed. EZ M.2 Shield Frozr II, Lightning Gen 5, Triple M.2 Connectors, 5G Network Solution.
Others
7.1-Channel High Definition Audio, Internal IO: 1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR), 1x Power Connector(PCIE_PWR 8pin), 1x CPU Fan, 1x Combo Fan (Pump_Sys Fan), 5x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Tuning Controller connector(JDASH), 1x TPM pin header(Support TPM 2.0), The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps, Supports 802.11 a/ b/ g/ n/ ac/ ax/ be, Back Panel Ports: Clear CMOS Button, Audio Connectors, Wi-Fi / Bluetooth, S/PDIF-OUT.
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Specification may differ
with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Video

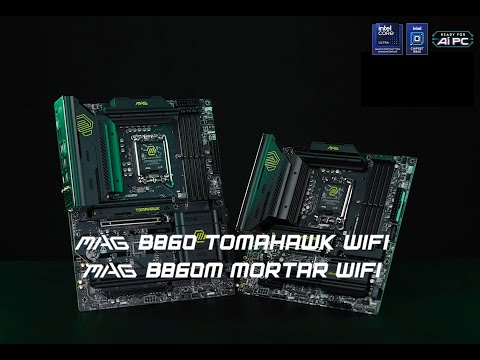

MAG B860 Series Motherboards - Stable Foundation, Durably Built | MSI
