4 x M.2 (M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode), M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode), M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode))
M.2/SSD Slot Gen
Up to Gen 5
Graphics
Graphics
Integrated
Graphics Chipset
Integrated With Processor
Multi-GPU Support
No
PCI Express Slot
1 x PCIe 5.0 x16 slot, 1 x PCIe 4.0 x16 slot (supports x4 mode),
Audio & Video
Audio Chipset
Realtek ALC1220P
Audio Channel
7.1
Network & Connectivity
LAN Chipset
1 x Intel 2.5Gb Ethernet
LAN Speed (Mbps)
10/ 100/ 1000/ 2500Mbps
WiFi
Yes
WiFi Technology
Wi-Fi 7 (802.11be)
Bluetooth
Bluetooth 5.4
Ports
USB Port
4 x USB 2.0 Type-A, 2 x USB 5Gbps Type-A, 2 x USB 10Gbps Type-A, 1 x USB 10Gbps Type-C, 1 x USB4 20Gbps Type-C
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
1
SATA Port
4 x SATA
Thunderbolt
No
Technical Info
Back-Connect Design
No
Cable Management
Front
Heatsink
Yes
CrossFire Support
No
Sli Support
No
Raid Support
0, 1, 5, 10
RGB Support
ARGB
RGB Sync
Aura Sync
RGB Connector
3 x Addressable Gen2 header(s)
Approx. Power Consumption
70W
Form Factor
ATX
Bios Information
BIOS Type
256 Mb Flash ROM
BIOS Model
UEFI AMI BIOS
Compatibility
Supported Operating System
Windows 11
Compatible Products
Compatible with LGA1851 Sockets Intel Core Ultra Processors (Series 2)
Warranty
Warranty Details
3 Year Replacement
Additional Info
Feature
SupremeFX Shielding Technology, Savitech SV3H712 AMP, Rear optical S/PDIF out port, Premium audio capacitors, Dedicated audio PCB layers, Audio cover, Extreme Engine Digi+, ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY, ROG Exclusive Software, ASUS Exclusive Software, AI Overclocking Guide, ASUS EZ DIY , ASUS CrashFree BIOS 3, NPU Boost, Manageability: WOL by PME, UEFI PXE.
Others
Audio: High Definition Audio CODEC, Impedance sense for front and rear headphone outputs, Internal audio Amplifier to enhance the highest quality sound for headphone and speakers, Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in), Supports up to 32-Bit/192 kHz.
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Specification may differ
with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Video

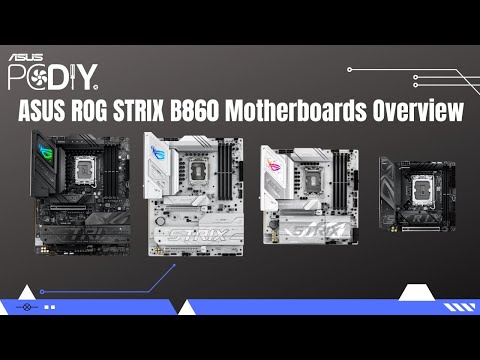

ROG STRIX B860 Motherboards Overview
