supporting up to 256GB (64GB single DIMM capacity) of system memory
Optane Memory Support
No
Storage
Depolama Arayüzü
6.0 Gb/s
M.2/SSD Expansion Slot
3
M.2/SSD Expansion Slot Details
3 x M.2 (1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0x4/x2 SSD support), 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support))
M.2/SSD Slot Gen
Up to Gen 5
Graphics
Grafikler
Integrated
Graphics Chipset
Intel HD Graphics Support
Multi-GPU Support
No
PCI Express Slot
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16, 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1
Audio & Video
Ses Çipseti
Realtek Audio CODEC
Audio Channel
2/4/5.1/7.1
Network & Connectivity
LAN Çipseti
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
LAN Speed (Mbps)
2.5 Gbps/1 Gbps/100 Mbps
WiFi
Yes
WiFi Technology
Wi-Fi 7 (802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands)
Bluetooth
Bluetooth 5.4

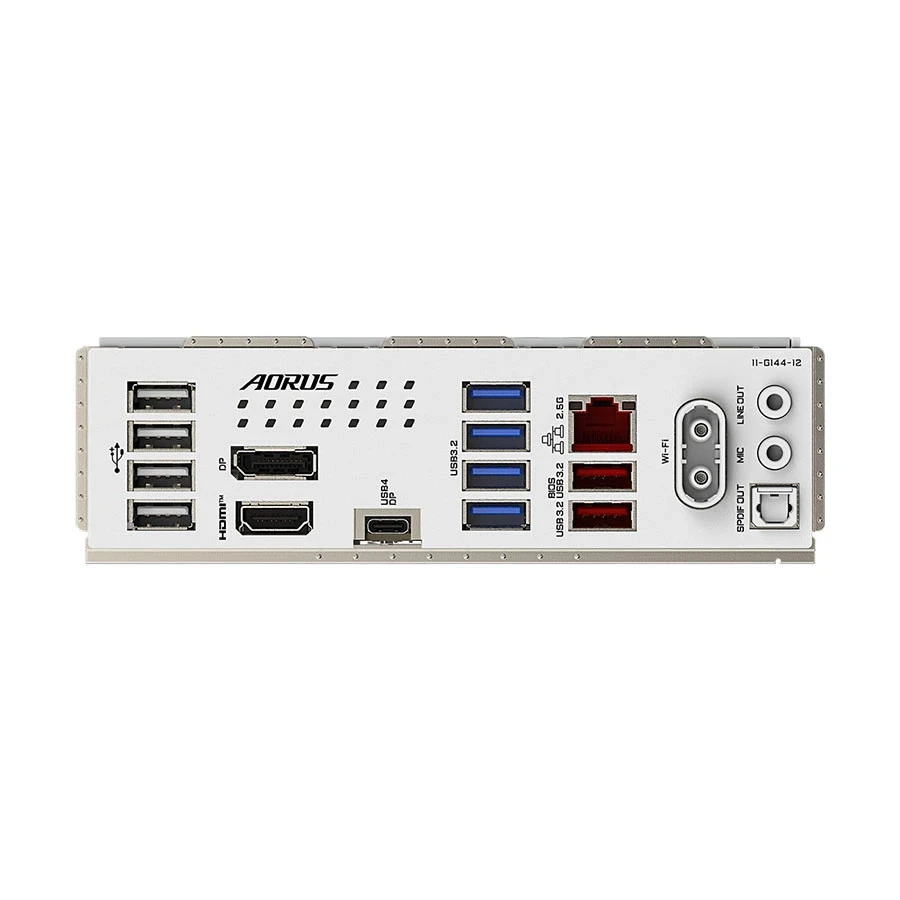

Ports
USB Bağlantı Noktası
1 x USB 4 USB Type-C port (DisplayPort (Note)), 2 x USB 3.2 Gen 2 Type-A ports (red), 4 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
1
IDE Port
No
SATA Port
4
Thunderbolt
No
TPM Port
Yes
COM Port
No
Technical Info
Arka Bağlantı Tasarımı
HAYIR
Cable Management
Front
Heatsink
Yes
FireWire
No
CrossFire Support
No
Sli Support
No
Raid Support
RAID 0, 1, 5 and 10 for SATA storage devices
RGB Support
ARGB
RGB Sync
RGB Fusion
RGB Connector
3 x addressable RGB Gen2 LED strip headers, 1 x RGB LED strip header
Approx. Power Consumption
70W
Form Factor
ATX
Bios Information
BIOS Türü
1 x 256 Mbit flash
BIOS Model
AMI UEFI BIOS
BIOS Version
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Compatibility
Desteklenen İşletim Sistemi
Windows 11 64-bit
Compatible Products
LGA1851 socket: Support for Intel Core Ultra Processors
Warranty
Garanti Detayları
3 yıl
Additional Info
Özellik
Supports Intel Core Ultra processors (Series 2), Digital twin 14+1+2 phases VRM solution, Dual Channel DDR5 : 4 x DIMMs with XMP Memory Module Support, D5 Bionic Corsa for Infinite Memory Performance, AI Perfdrive : Provides optimal and customized BIOS preset profile for users, WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation.
Others
EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design, EZ-Latch Click : M.2 heatsinks with screwless design, Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup, Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW, Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Ext. Fast Networking : 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna.
Country Of Origin
Taiwan
Made in/ Assemble
China
