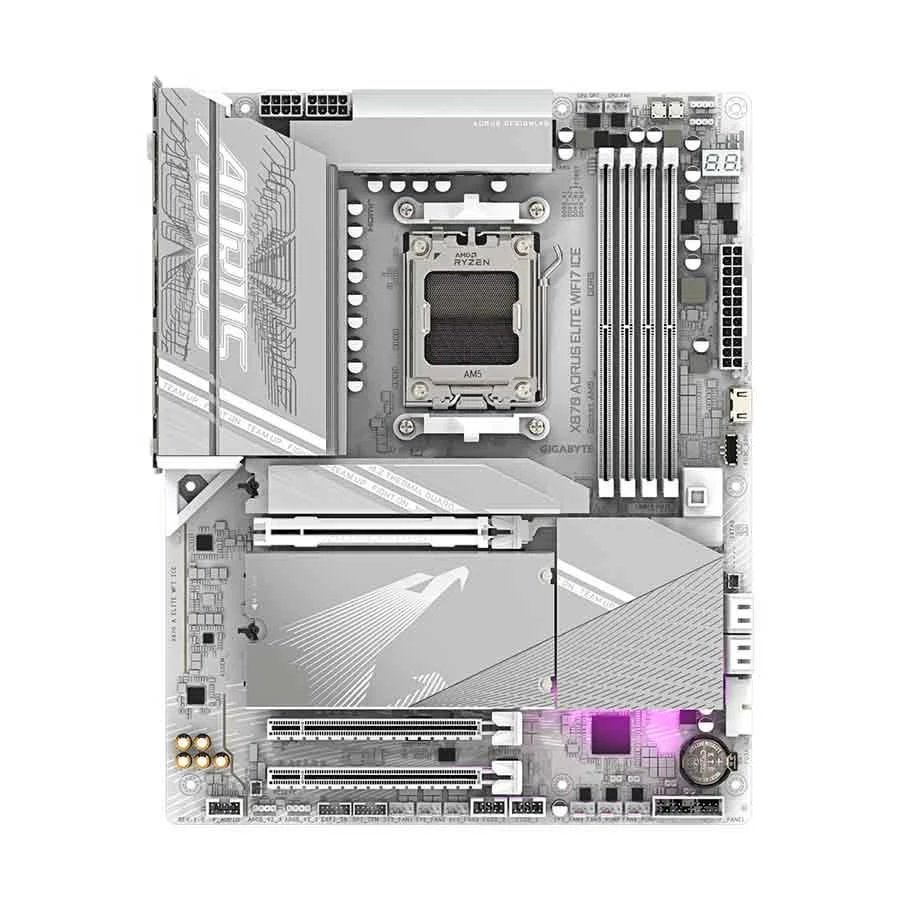

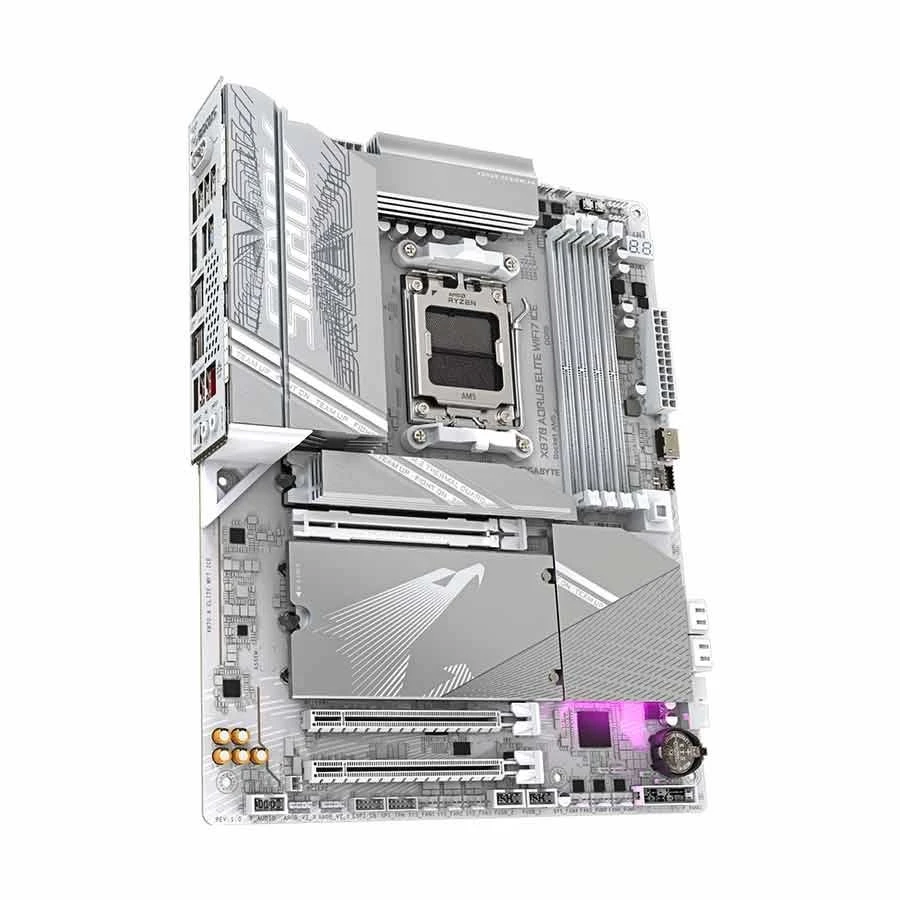

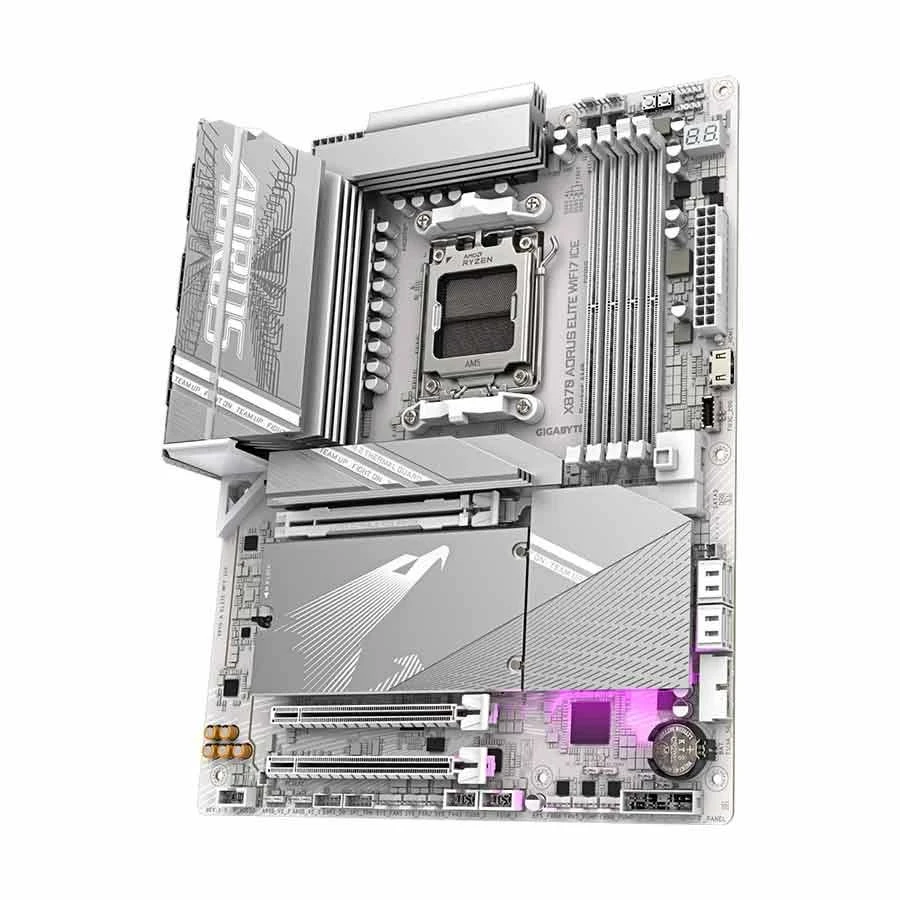

Gigabyte X870 AORUS ELITE ICE (Wi-Fi 7) DDR5 AMD Oyun Anakartı #X870 A ELITE WF7 ICE
4 x M.2 (3 x PCIe 5.0 M.2 UD Slots, 1 x PCIe 4.0 M.2 Slot)
M.2/SSD Slot Gen
Up to Gen 5
Graphics
Grafikler
Integrated
Graphics Chipset
AMD Radeon Graphics support
Multi-GPU Support
No
PCI Express Slot
1 x PCIe 5.0 x16 with PCIe UD Slot X, 1 x PCIe 4.0 x4 Slot, 1 x PCIe 3.0 x2 Slot
Audio & Video
Ses Çipseti
Realtek ALC1220 CODEC
Audio Channel
7.1
Network & Connectivity
LAN Çipseti
Realtek 2.5GbE LAN chip
LAN Speed (Mbps)
100/ 1000/ 2500Mbps
WiFi
Yes
WiFi Technology
Wi-Fi 7
Bluetooth
Bluetooth 5.4

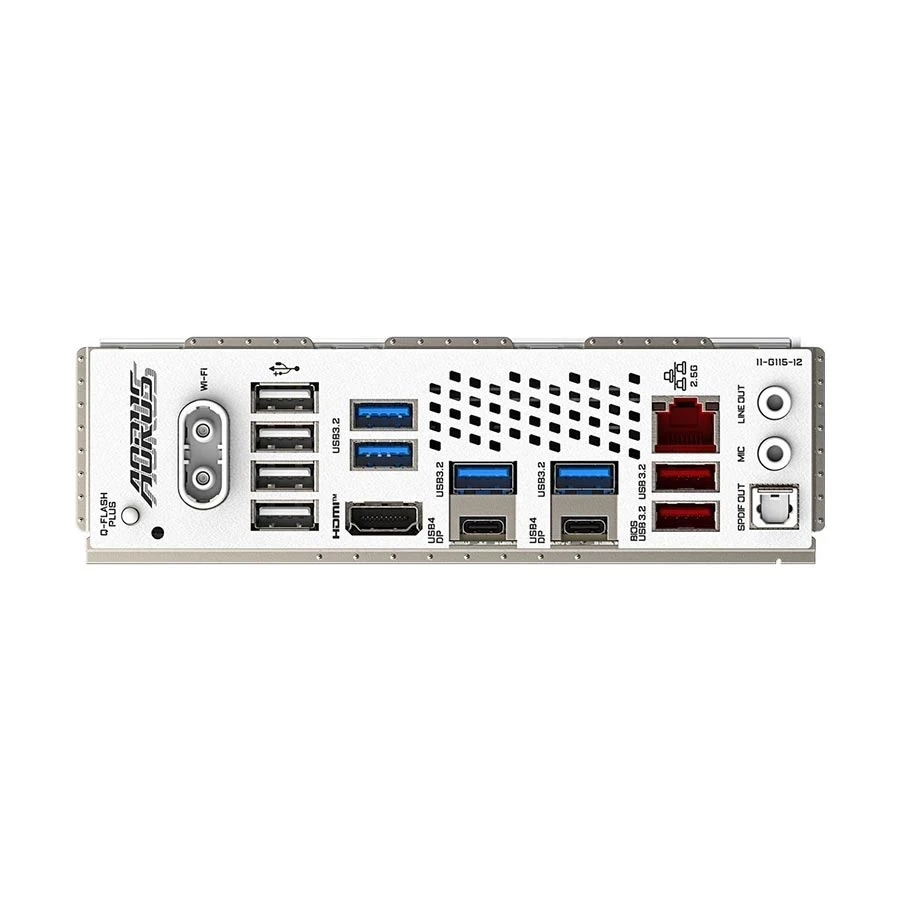

Ports
USB Bağlantı Noktası
2 x USB 4 USB Type-C ports (DisplayPort (Note)), 2 x USB 3.2 Gen 2 Type-A ports (red), 4 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
No
IDE Port
No
SATA Port
4
Thunderbolt
No
TPM Port
1
Technical Info
Arka Bağlantı Tasarımı
HAYIR
Cable Management
Front
Heatsink
Yes
FireWire
No
CrossFire Support
No
Sli Support
No
Raid Support
0, 1, 5, 10
RGB Support
RGB
Approx. Power Consumption
70W
Form Factor
ATX
Bios Information
BIOS Türü
1 x 256 Mbit flash
BIOS Model
AMI UEFI BIOS
BIOS Version
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Compatibility
Desteklenen İşletim Sistemi
Windows 11
Compatible Products
AMD Socket AM5, support for: AMD Ryzen 9000/ 8000/ 7000 Series Processors
Warranty
Garanti Detayları
3 yıl
Additional Info
Özellik
Digital twin 16+2+2 phases VRM solution, Dual Channel DDR5: 4 x DIMMs with AMD EXPO Memory Module Support, WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation, EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design, EZ-Latch Click: M.2 heatsinks with screwless design, Sensor Panel Link: Onboard video port for hassle-free in-chassis panel setup, Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW, Ultra-Fast Storage: 4 x M.2 slots, including 3 x PCIe 5.0 x4, Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard L, Fast Networking: 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna, Extended Connectivity: Dual USB4 Type-C with DP-Alt, HDMI, Reliable Audio: Realtek ALC1220 HD Audio & Audiophile Grade Capacitors, Ultra Durable PCIe Armor: The metal back plate of PCIe x16 slot for enhanced durability, PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card.
Others
Unique Features: Support for GIGABYTE Control Center (GCC), Support for Q-Flash, Support for Q-Flash Plus, Support Smart Backup, Bundled Software: Norton Internet Security (OEM version), LAN bandwidth management software, H/W Monitoring: Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control, Noise detection, I/O Controller: iTE I/O Controller Chip
Country Of Origin
Taiwan
Made in/ Assemble
China
