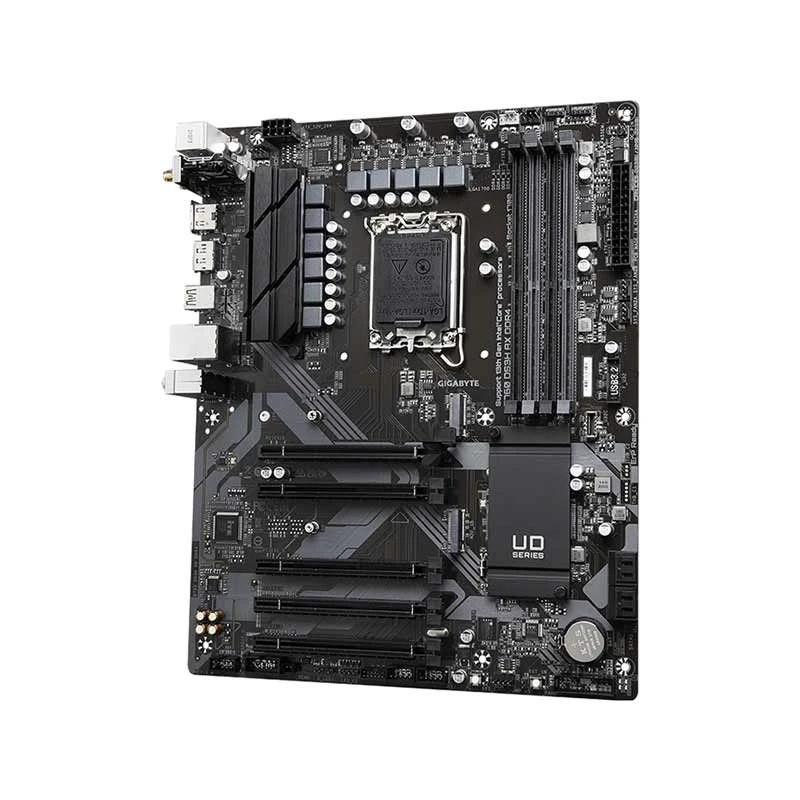

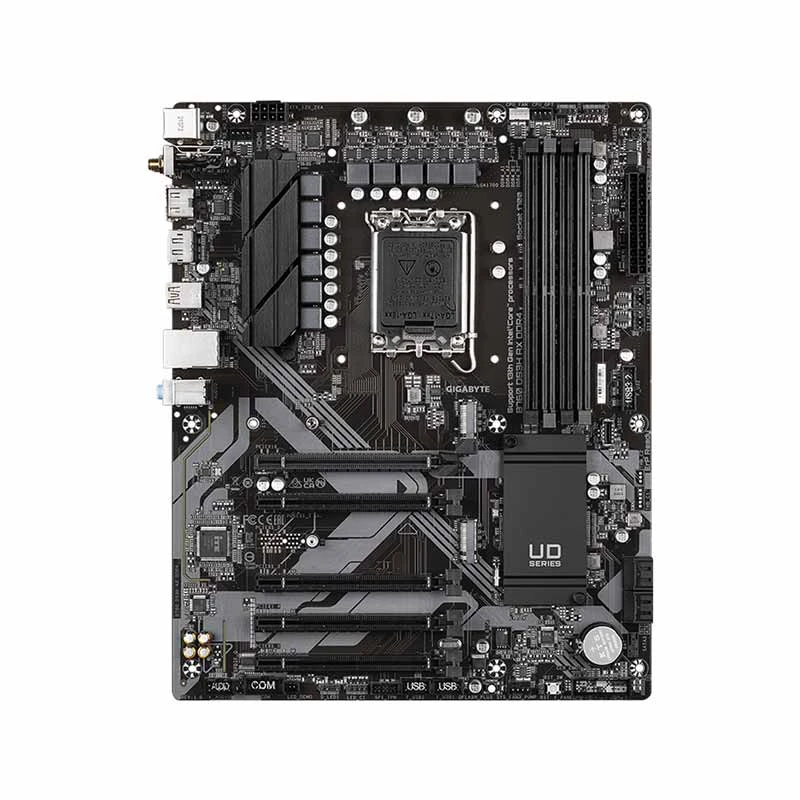

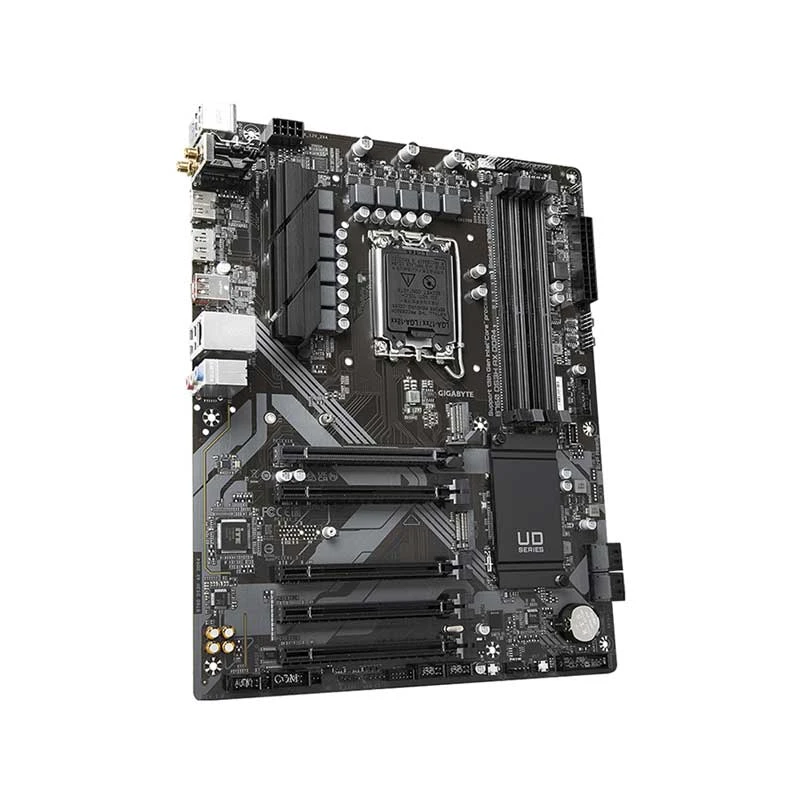

Gigabyte B760 DS3H AX DDR4 12./13./14. Nesil Intel LGA1700 Soket Anakart

Ürün Kimliği: X02.01.018.20

Özel Fiyat
TL 9.194

Save Extra TL 459 on online order

Hızlı Genel Bakış

Chipset - Intel B760
Sockets Supported - LGA1700
Supported CPU - 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
Generation - 12th/13th/14th
Memory Slot - 4
Memory Max. - 128GB
Back-Connect Design - No
Body Color - Black

Marka

Gigabyte

Model

Gigabyte B760 DS3H AX

Çipset

Intel B760

Desteklenen Soketler

LGA1700

Dahili İşlemci

HAYIR

Nesil

12./13./14.

Arka Bağlantı Tasarımı

HAYIR

Bellek Türü

DDR4

Hafıza Yuvası

Maksimum Bellek.

128 GB

Optane Bellek Desteği

HAYIR

Grafikler

Integrated

Grafik Çipseti

Intel HD Graphics support

M.2/SSD Genişletme Yuvası

Wifi

Yes

Bluetooth

Bluetooth 5.3

Şekil Faktörü

ATX Form

Desteklenen İşletim Sistemi

Windows 11 64-bit, Windows 10 64-bit

Vücut Rengi

Black

Garanti Detayları

General

Marka

Gigabyte

Model

Gigabyte B760 DS3H AX

Body Color

Black

CPU

Çipset Markası

Intel

Chipset

Intel B760

Sockets Supported

LGA1700

Built-in Processor

Supported CPU

14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors

Generation

12th/13th/14th

Memory Support

Bellek Türü

DDR4

Memory MHz

5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules

Memory Channel

Memory Slot

Memory Max.

128GB

Optane Memory Support

Storage

Depolama Arayüzü

6.0 Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

2 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU), M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

M.2/SSD Slot Gen

Up to Gen 4

Graphics

Grafikler

Integrated

Graphics Chipset

Intel HD Graphics support

Multi-GPU Support

PCI Express Slot

CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16), Chipset: 4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_3~PCIEX1_5)

Audio & Video

Ses Çipseti

Realtek Audio CODEC

Audio Channel

2/4/5.1/7.1

Network & Connectivity

LAN Çipseti

Realtek GbE LAN chip

LAN Speed (Mbps)

100 / 1000Mbps

WiFi

Yes

WiFi Technology

AMD Wi-Fi 6E RZ608

Bluetooth

Bluetooth 5.3

Ports

USB Bağlantı Noktası

Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support, 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header, 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel, 2 x USB 3.2 Gen 1 ports available through the internal USB header, 4 x USB 2.0/1.1 ports on the back panel, hipset+2 USB 2.0 Hubs: 4 x USB 2.0/1.1 ports available through the internal USB headers

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

IDE Port

SATA Port

Thunderbolt

TPM Port

Yes

COM Port

Technical Info

Arka Bağlantı Tasarımı

HAYIR

Cable Management

Front

Heatsink

CrossFire Support

Sli Support

Raid Support

0, 1, 5, 10

RGB Support

Yes

RGB Sync

RGB

RGB Connector

2 x RGB LED strip headers

Approx. Power Consumption

70W

Form Factor

ATX Form

Bios Information

BIOS Türü

1 x 128 Mbit flash

BIOS Model

AMI UEFI BIOS

BIOS Version

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Compatibility

Desteklenen İşletim Sistemi

Windows 11 64-bit, Windows 10 64-bit

Compatible Products

14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors

Warranty

Garanti Detayları

Additional Info

Özellik

Unparalleled Performance: Hybrid 8+2+1 Phases Digital VRM Solution, Dual Channel DDR4: 4 x DIMMs XMP Memory Module Support, Next Generation Storage: 2 x PCIe 4.0 x4 M.2 Connectors, EZ-Latch: PCIe 4.0x16 Slot with Quick Release Design, Fast Networks：GbE LAN & Wi-Fi 6E 802.11ax, Extended Connectivity: Rear USB-C 20Gb/s, DP, HDMI, Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP, Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

Others

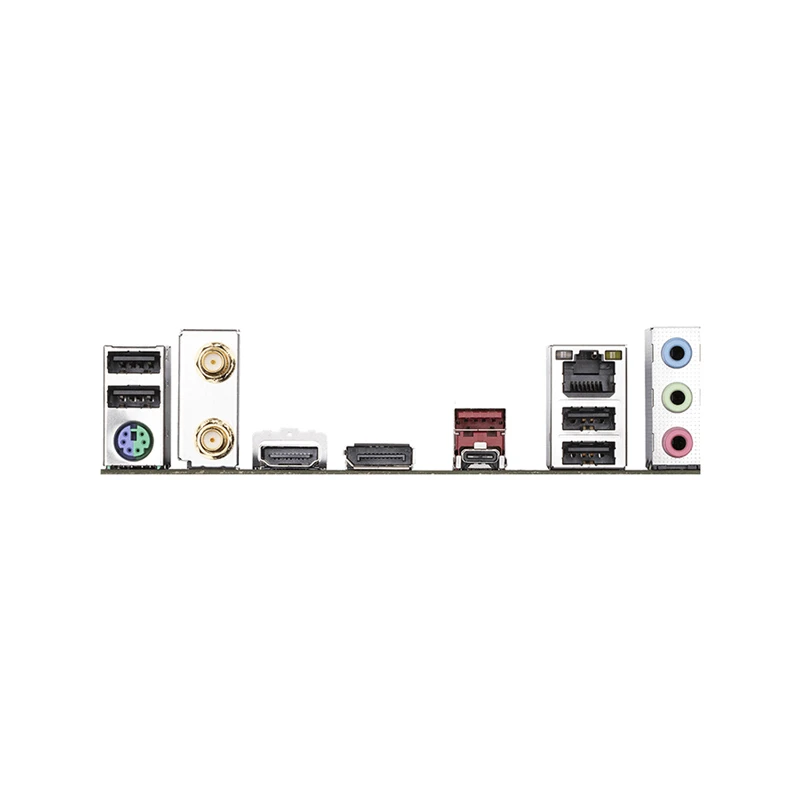

Internal I/O Connectors: 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 1 x CPU fan/water cooling pump header, 3 x system fan headers, 1 x system fan/water cooling pump header, 2 x addressable LED strip headers, 1 x front panel header, 1 x front panel audio header, 1 x S/PDIF Out header, 1 x serial port header, 1 x Q-Flash Plus button, 1 x reset button, 1 x reset jumper, 1 x Clear CMOS jumper, Back Panel Connectors: 1 x PS/2 keyboard/mouse port, 2 x SMA antenna connectors (2T2R), 1 x RJ-45 port, 3 x audio jacks, ATX Form Factor: 30.5cm x 24.4cm

Detaylar

Features of Gigabyte B760 DS3H AX Motherboard In Turkey

What is the price of Gigabyte B760 DS3H AX Motherboard In Turkey?

The price of Gigabyte B760 DS3H AX Motherboard starts from 9,194 . The price may vary due to your customization and product availability. You can buy Gigabyte B760 DS3H AX Motherboard from our website or visit our showrooms nearby.
Looking to purchase office, corporate, or institutional equipment? RYANS TEKNOLOJI is here to help. We provide customized solutions tailored to your needs, backed by fast delivery and dependable after-sales service. Our expert Ryans Care team is always ready to support you with troubleshooting, technical assistance, and configuration services—so you can focus on what matters most.
