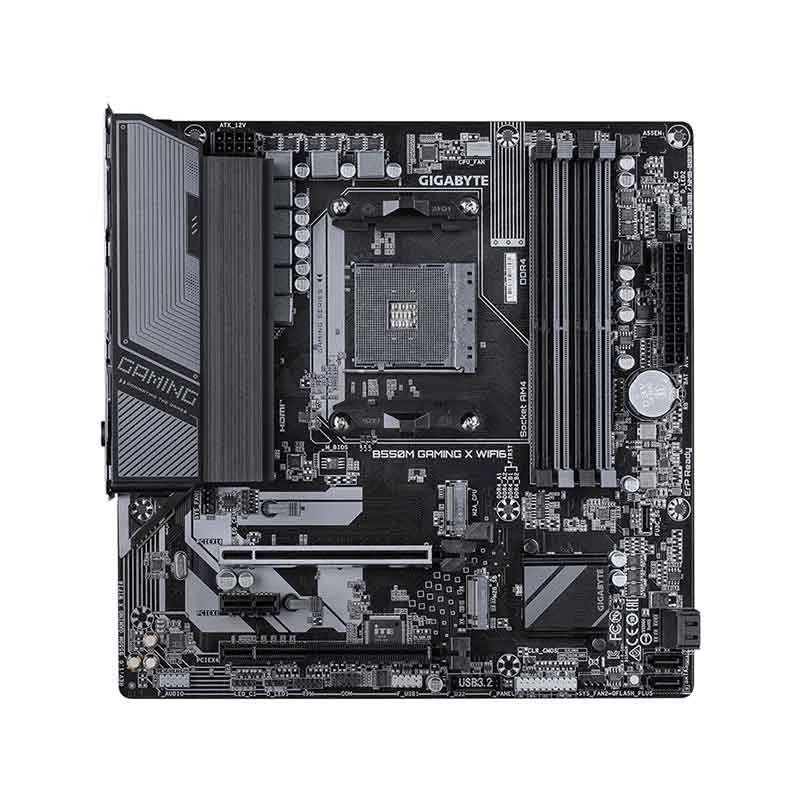

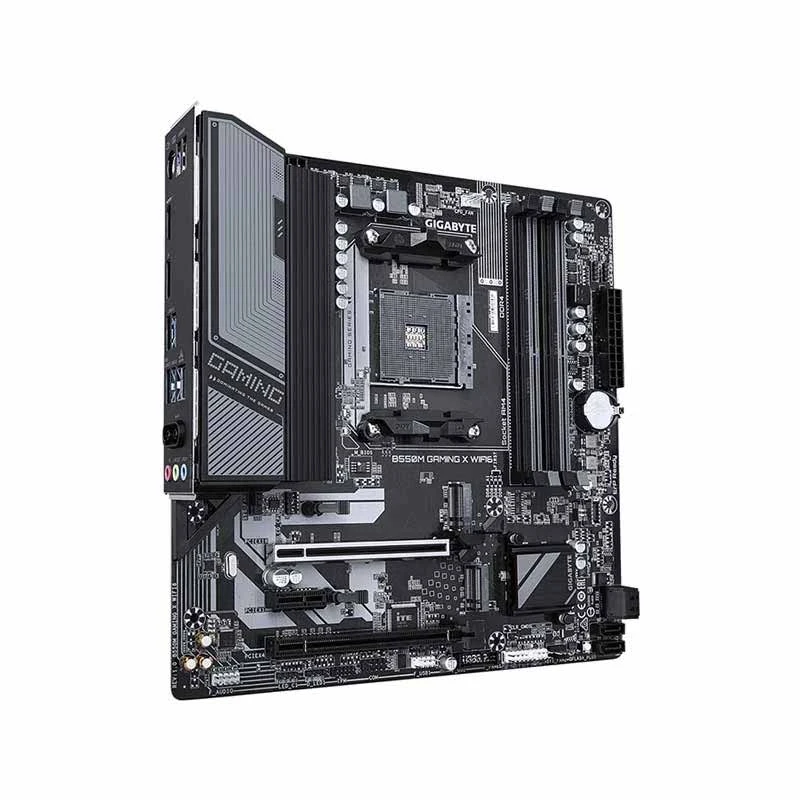

Gigabyte B550M GAMING X (Wi-Fi 6) DDR4 AM4 Socket AMD Motherboard #B550M GAMING X WIFI6
2 x M.2 (1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSD, 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSD)
M.2/SSD Slot Gen
Up to Gen 4
Graphics
Graphics
Integrated
Graphics Chipset
Integrated With Processor
Multi-GPU Support
No
PCI Express Slot
1 x PCI Express x16 slot (PCIEX16), 1 x PCI Express x16 slot (PCIEX4), supporting PCIe 3.0 and running at x4, 1 x PCI Express x1 slot (PCIEX1), supporting PCIe 3.0 and running at x1
Audio & Video
Audio Chipset
Realtek ALC1220 CODEC
Audio Channel
2/4/5.1/7.1
Network & Connectivity
LAN Chipset
Realtek GbE LAN chip
LAN Speed (Mbps)
10/100/1000 Mbps
WiFi
Yes
WiFi Technology
Realtek Wi-Fi 6 RTL8851BE
Bluetooth
Bluetooth 5.3
Ports
USB Port
2 x USB 2.0/1.1 Type-A, 4 x USB 3.2 Gen 1 Type-A
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
1
SATA Port
4 x SATA
Thunderbolt
No
Technical Info
Back-Connect Design
No
Cable Management
Front
Heatsink
Yes
CrossFire Support
No
Sli Support
No
Raid Support
0, 1, 10
RGB Support
ARGB
RGB Connector
2 x addressable LED strip headers, 2 x RGB LED strip headers
Voltage detection, Temperature detection, Fan speed detection, Overheating warning, Fan fail warning, Fan speed control, @BIOS, EasyTune, RGB Fusion, Smart Backup, System Information Viewer, Support for Q-Flash Plus, Support for Q-Flash, Infinite Memory Performance, Comprehensive Thermal, Hassle-free Assembly, RGB Fusion.
Others
High Definition Audio, WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands, Internal I/O Connectors: 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 2 x system fan headers, 1 x CPU cooler LED strip/RGB LED strip header, 4 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only), 1 x serial port header, 1 x Clear CMOS jumper, 1 x Q-Flash Plus button, Back Panel Connectors: 1 x PS/2 keyboard/mouse port, 1 x RJ-45 port, 2 x antenna connectors, 3 x audio jacks. iTE I/O Controller Chip.
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Specification may differ
with actual product. In that case, Ryans will execute full refund within 5 days.
Details
QUESTION & ANSWER
Customer Questions
Q:
এটাতে Gen 4 SSD সাপোর্ট করবে?
Asked By Purno BD
A:
প্রিয় গ্রাহক, জি , সাপোর্ট করবে ধন্যবাদ।
Answered By Ryans Computers Ltd.
, 01 Sep 2025
Q:
PCI gen koto
Asked By Roktim
A:
প্রিয় গ্রাহক মডেলটির পিসিআই জেন থ্রি ধন্যবাদ
Answered By Ryans Computers Ltd.
, 13 Jul 2025
