2 x M.2 (1 x PCIe 4.0 M.2 Slot, 1 x PCIe 3.0 M.2 Slot)
M.2/SSD Slot Gen
Up to Gen 4
Graphics
Grafikler
Integrated
Graphics Chipset
AMD Radeon Graphics support
Multi-GPU Support
No
PCI Express Slot
1 x PCIe 4.0 x16 with PCIe UD Slot, 1 x PCIe 3.0 x16 Slot (running x4), 1 x PCIe 3.0 x1.
Audio & Video
Ses Çipseti
Realtek ALC1220 CODEC, High Definition Audio
Audio Channel
7.1
Network & Connectivity
LAN Çipseti
Realtek GbE LAN chip
LAN Speed (Mbps)
10/ 100/ 1000Mbps
WiFi
Yes
WiFi Technology
Realtek Wi-Fi RTL8821CE
Bluetooth
Bluetooth 5.0

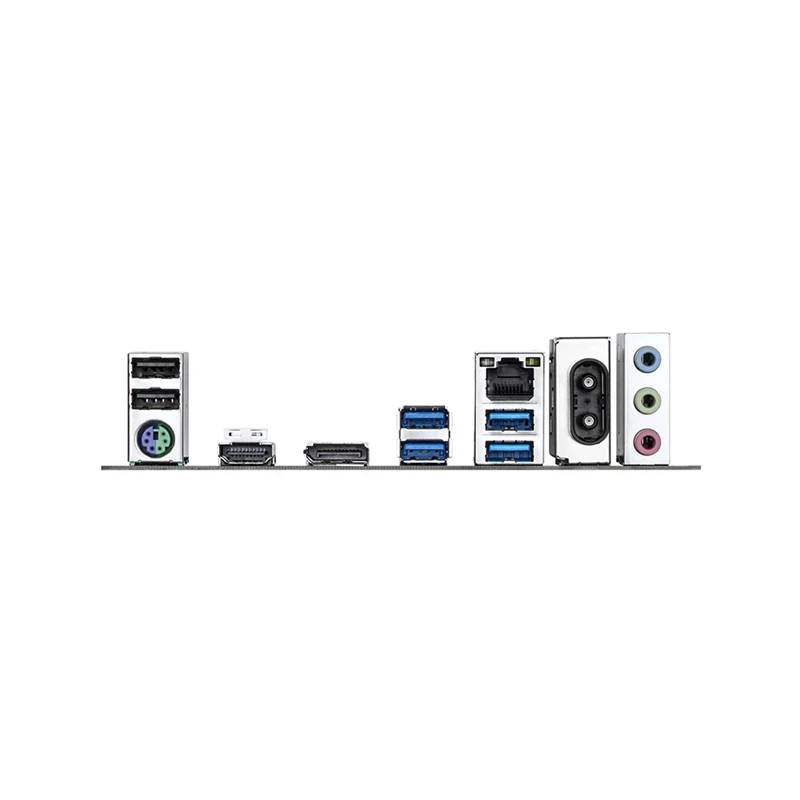

Ports
USB Bağlantı Noktası
2 x USB 2.0/1.1 ports, 4 x USB 3.2 Gen 1 ports
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
1
SATA Port
4
Thunderbolt
No
TPM Port
1
Technical Info
Arka Bağlantı Tasarımı
HAYIR
Cable Management
Front
Heatsink
No
FireWire
No
CrossFire Support
No
Sli Support
No
Raid Support
0, 1, 10
RGB Support
RGB
RGB Sync
RGB Fusion 2.0
Approx. Power Consumption
60W
Form Factor
Micro-ATX
Bios Information
BIOS Türü
1 x 128 Mbit flash
BIOS Model
AMI UEFI BIOS
BIOS Version
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Compatibility
Desteklenen İşletim Sistemi
Windows 11/ Windows 10
Compatible Products
AMD Socket AM4, support for: AMD Ryzen 5000 G-Series/ 5000/ 4000 G-Series/ 3000 G-Series/ 3000 Series Processors
Warranty
Garanti Detayları
3 yıl
Additional Info
Özellik
Digital 5+3-phase VRM solution, WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation, EZ-Latch: PCIe slots with Quick Release Design, Ultra-Fast Storage: 2 x M.2 slots, including PCIe 4.0 x1, Efficient Thermal: VRM Thermal Armor Advanced, Fast Networking: GbE LAN & Wi-Fi 5, Extended Connectivity: HDMI, DisplayPort, PCIe UD Slot: PCIe 4.0 x16 slots with 10X strength for graphics cards & better heat dissipation effect
Others
Unique Features: Support for APP Center: BIOS, EasyTune, RGB Fusion, Smart Backup, System Information Viewer Support for Q-Flash Plus Support for Q-Flash Bundled Software Norton Internet Security (OEM version) LAN bandwidth management software I/O Controller iTE I/O Controller Chip, H/W Monitoring: Voltage detection, Temperature detection, Fan speed detection, Overheating warning, Fan fail warning, Fan speed control, Internal I/O Connectors: 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 2 x system fan headers, 2 x addressable LED strip headers, 2 x RGB LED strip headers, 1 x CPU cooler LED strip/RGB LED strip header, 2 x M.2 Socket 3 connectors, 4 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x USB Type-C header, with USB 3.2 Gen 1 support, 1 x USB 3.2 Gen 1 header, 1 x USB 2.0/1.1 header, 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0-S module only), 1 x serial port header, 1 x Clear CMOS jumper, 1 x Q-Flash Plus button
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Görsel, ürünün gerçek düzeni, rengi, boyutu ve ölçülerinden farklılık gösterebilir. Görsel uyumsuzluğu nedeniyle herhangi bir talep kabul edilmeyecektir. Bu web sitesinde kullanılan ürün verileri yalnızca üretici tarafından sağlanan bilgilere dayanmaktadır; orijinalliği ve doğruluğu yalnızca üreticinin sorumluluğundadır.
Detaylar
SORU & CEVAP
Müşteri Soruları
Q:
m2 slot bole 3 ta naki sotti confused plz blben
Asked By Rifat
A:
প্রিয় গ্রাহক , M.2/SSD Expansion Slot-2 ধন্যবাদ।
Answered By RYANS TEKNOLOJI Ltd.
, 21 Oct 2025
Q:
কবে মধ্যে আসবে স্যার এটা কি বলা যাবে??????
Asked By
A:
প্রিয় গ্রাহক , প্রোডাক্টটি কবে স্টকে আসবে এ সম্পর্কে কোনো সুনির্দিষ্ট তথ্য দেওয়া সম্ভব নয় প্রোডাক্টটি আমাদের স্টকে আসলে ওয়েবসাইটে আপডেট করে দেওয়া হবে। ধন্যবাদ।
Answered By RYANS TEKNOLOJI Ltd.
, 05 Oct 2025
Q:
এটা কি এখন purchase করা যাবে?
Asked By
A:
প্রিয় গ্রাহক , প্রোডাক্টটি আউট অফ স্টক। ধন্যবাদ।
Answered By RYANS TEKNOLOJI Ltd.
, 05 Oct 2025
Q:
এটা কি এখন স্টুক আছে?
Asked By
A:
প্রিয় গ্রাহক , প্রোডাক্টটি আউট অফ স্টক। ধন্যবাদ।
Answered By RYANS TEKNOLOJI Ltd.
, 05 Oct 2025
Q:
Vrm phase? And heatsink কি আছে?
Asked By Asad
A:
প্রিয় গ্রাহক, এই মাদারবোর্ডে VRM Phase আছে কিন্তু Heatsink নেই। ধন্যবাদ।
