Netgear WAX628 AX5400 Mbps Dual Band Wi-Fi 6 PoE Access Point (4 Year Insight Subscriptions Free)
Interface(s) - 1 x 100/1000/2.5G Gigabit Ethernet (RJ-45) ports with Auto Uplink (Auto MDI-X) supporting IEEE 802.3af or 802.3at Power over Ethernet (PoE), 1 x 10/100/1000 Mbps Gigabit Ethernet (RJ-45) port
1 x 100/1000/2.5G Gigabit Ethernet (RJ-45) ports with Auto Uplink (Auto MDI-X) supporting IEEE 802.3af or 802.3at Power over Ethernet (PoE), 1 x 10/100/1000 Mbps Gigabit Ethernet (RJ-45) port
Number of WAN Port
1
Number of LAN Port
1
Bluetooth
No
Antenna (Type & Qty)
2 x Internal
Max. Concurrent Clients
75
MU-MIMO Support
Yes
Multi-User MIMO
Yes
Power Method
12V DC, 2.5A & PoE.
Max. Power Consumption
21.2W
Operating Mode
Access Point, Bridge
Mounting
Yes
Color
White
Dimensions
241.15 x 239.6 x 51.38mm
Weight (gm)
819 gm
Warranty Details
5 Year (Without Adapter)
General
Brand
Netgear
Model
Netgear WAX628
Hardware
Network Standards
802.11a/n/ac/ax (5.0GHz), 802.11b/g/n/ax (2.4GHz)
Data Transfer Rates
5400 Mbps
WAN Network Standard
2.5 Gbps
LAN Network Standard
10/100/1000
Interface
Interface(s)
1 x 100/1000/2.5G Gigabit Ethernet (RJ-45) ports with Auto Uplink (Auto MDI-X) supporting IEEE 802.3af or 802.3at Power over Ethernet (PoE), 1 x 10/100/1000 Mbps Gigabit Ethernet (RJ-45) port
Number of WAN Port
1
Number of LAN Port
1
Wireless
Security Protocols
WiFi Protected Access (WPA/WPA2/WPA3), 802.11i, MAC address filtering with access control, 802.1x RADIUS support with EAP TLS, TTLS, PEAP, Neighbor AP detection, Block SSID Broadcast, VLAN Support, Guest Network/Captive Portal, Bandwidth management, Link Layer Discovery Protocol, Bandsteering
Band
Dual
Frequency
2.4GHz - 5GHz
Bluetooth
No
Antenna (Type & Qty)
2 x Internal
Antenna Gain
2.4 dbi, 2.9 dbi
Antenna Placement
Internal
MU-MIMO Support
Yes
Multi-User MIMO
Yes
Wireless Modes
Access Point, Bridge
Management
Throughput
AX5400 5.4Gbps
Wireless Users Capacity
275
Max. Concurrent Clients
75
SSID Numbers
8
Operating Mode
Access Point, Bridge
Management
Insight App
Remote Management
Insight or Standalone
Performance
OFDM/OFDMA
OFDM & OFDMA
Technical Info
Ideal Use
Residential and Commercial Integrator
Security
Guest Network Support
Yes
Electrical
Power Method
12V DC, 2.5A & PoE.
DC Input Power
2.5A
Max. Power Consumption
21.2W
Environmental
Operating Temperature
0 to 40 degree C
Physical Description
LED Indicators
Five Power and Cloud connection, Two LAN ports 2.4GHz status, 5.0GHz status
Mounting
Yes
Mount Options
Ceiling /Wall Mounting
Dimensions
241.15 x 239.6 x 51.38mm
Color
White
Weight (gm)
819 gm
Packet Contents
WAX628 Insight managed, wireless access point, Wall/ceiling mount kit, Installation guide.
Warranty
Warranty Details
5 Year (Without Adapter)
Additional Info
Others
Wireless Mode (Transmit x Receive): 4x4 in 5.0GHz 2x2 in 2.4GHz, Channelization: 5GHz: 20/40/80/160MHz 2.4GHz: 20/40MHz, Multi-User MIMO: Bidir and MU-MIMO, Maximum Theoretical Throughput: AX5400 5.4Gbps, Maximum Theoretical Throughput per Band: 5.0GHz: 4800Mbps 2.4GHz:600Mbps, Power over Ethernet (PoE): 802.3at/af, PoE Power Consumption: 21.2W, Secure Socket Layer (SSL): Yes, Bridge Point-to-point/Multi-point: Yes, Simultaneous Bridge and Wireless Client Association: Yes, Wireless backhaul to form Mesh Network: Yes, IEEE 802.11ax WiFi 6 standard: Yes, Power over Ethernet (PoE) IEEE 802.3af: Yes, approximately 60% of, Wireless Distribution System (WDS): (Bridge mode: Point-to-point wireless Bridge mode: Point-to-multipoint wireless Repeater mode Adjustable Transmit Power Control (TPC) Device detection Identify type of wireless clients in the network).
Specialty
Ultimate speed and capacity with WiFi 6, Enterprise level security with WPA3 and 8 separate wireless networks (SSIDs), High speed and easy wiring with a 2.5GbE port with PoE, Mesh capabilities for seamless roaming and highly scalable coverage areas, Monitor and manage your network from anywhere with NETGEAR Insight, a user-friendly cloud monitoring and management cloud portal and app, BSS Coloring, Target Wake Time (TWT), WMM Wireless Multimedia Prioritization, WDS Wireless Distribution System.
Country Of Origin
USA
N.B. Specification may differ
with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Video

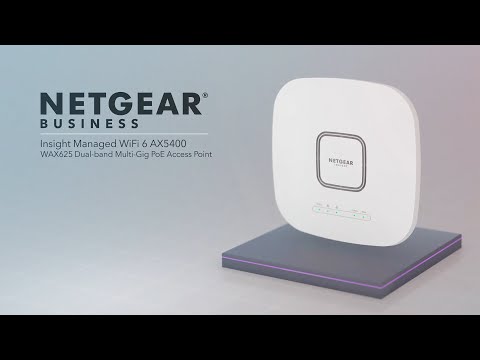

The NETGEAR Insight Managed WiFi 6 AX5400 Dual-band Multi-Gig PoE Access Point
