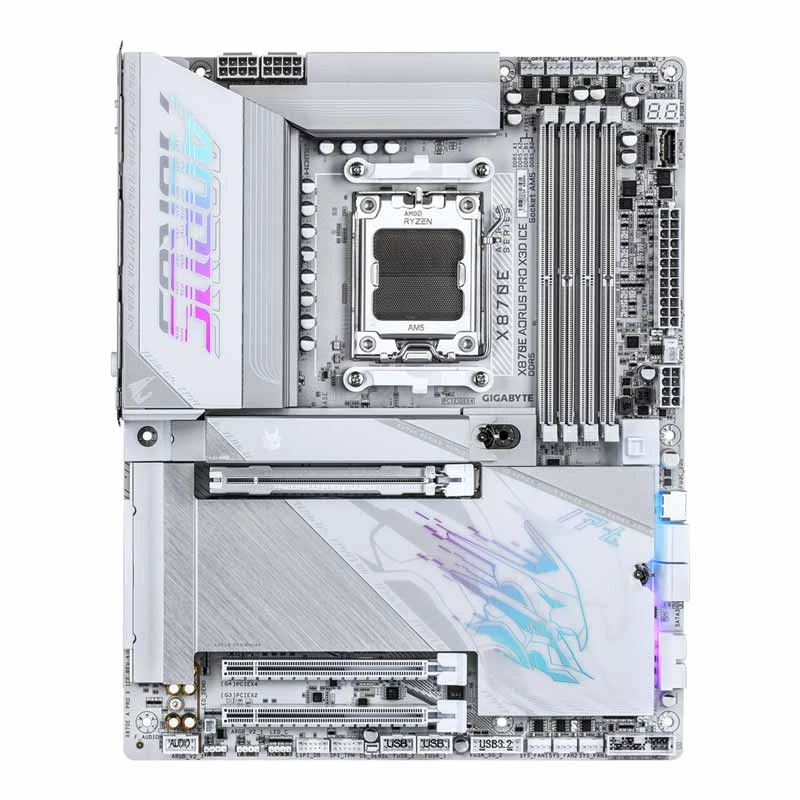

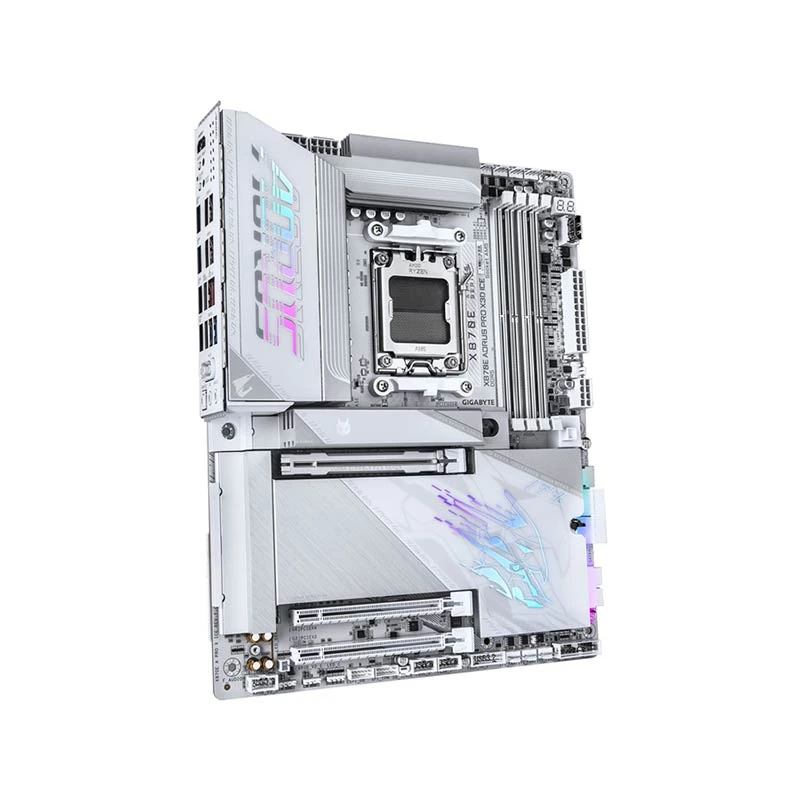

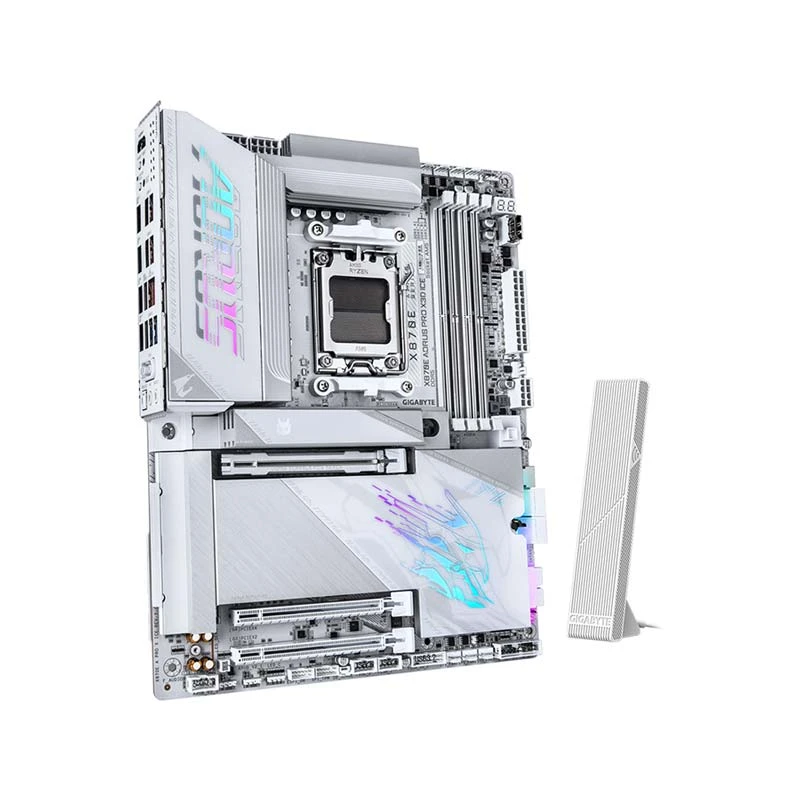

Gigabyte X870E AORUS PRO X3D ICE (Wi-Fi 7) DDR5 AMD AM5 Soket Oyun Anakartı #X870E A PRO X ICE

Ürün Kimliği: X02.02.018.01

Yakında gelecek

Hızlı Genel Bakış

Marka

Gigabyte

Model

Gigabyte X870E AORUS PRO X3D ICE (Wi-Fi 7)

Çipset

AMD X870E

Desteklenen Soketler

AM5

Dahili İşlemci

HAYIR

Nesil

Uygulanamaz

Arka Bağlantı Tasarımı

HAYIR

Bellek Türü

DDR5

Hafıza Yuvası

Maksimum Bellek.

256 GB

Optane Bellek Desteği

HAYIR

Grafikler

Integrated

Grafik Çipseti

AMD Radeon Graphics support

M.2/SSD Genişletme Yuvası

Wifi

Yes

Bluetooth

Bluetooth 5.4

Şekil Faktörü

ATX

Desteklenen İşletim Sistemi

Windows 11 64-bit

Vücut Rengi

White

Garanti Detayları

Duyurulacak

General

Marka

Gigabyte

Model

Gigabyte X870E AORUS PRO X3D ICE (Wi-Fi 7)

Body Color

White

Part No

X870E A PRO X ICE

CPU

Çipset Markası

AMD

Chipset

AMD X870E

Sockets Supported

AM5

Built-in Processor

Supported CPU

AMD Ryzen 9000 Series Processors/ AMD Ryzen 8000 Series Processors/ AMD Ryzen 7000 Series Processors

Generation

Not Applicable

Memory Support

Bellek Türü

DDR5

Memory MHz

9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8200(O.C.)/ 8000(O.C) / 7800(O.C) / 7600(O.C) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 MT/s

Memory Channel

Dual

Memory Slot

Memory Slot (Additional Info)

4 x DDR5 DIMM

Memory Max.

256GB

Memory Max. (Additional Info)

4 x DDR5 DIMM sockets supporting up to 256GB (64GB single DIMM capacity) of system memory

Optane Memory Support

Storage

Depolama Arayüzü

6.0 Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

4 x M.2 connector (1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs, 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs, 2 x M.2 connectors (M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs)

M.2/SSD Slot Gen

Up to Gen 5

Graphics

Grafikler

Integrated

Graphics Chipset

AMD Radeon Graphics support

Multi-GPU Support

PCI Express Slot

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU, 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4), 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)

Audio & Video

Ses Çipseti

Realtek ALC1220 CODEC

Audio Channel

2/4/5.1/7.1

Network & Connectivity

LAN Çipseti

Realtek 5GbE LAN chip

LAN Speed (Mbps)

5 Gbps/2.5 Gbps/1 Gbps/100 Mbps

WiFi

Yes

WiFi Technology

Qualcomm Wi-Fi 7 QCNCM865, 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands

Bluetooth

Bluetooth 5.4

Ports

USB Bağlantı Noktası

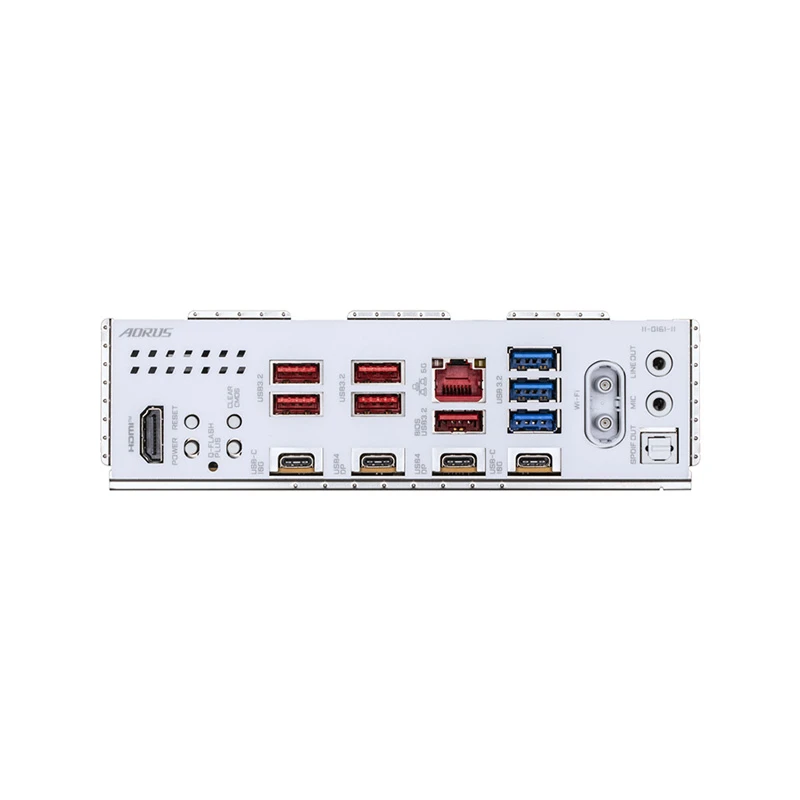

5 x USB 3.2 Gen 2 Type-A ports (red), 2 x USB Type-C ports, with USB 3.2 Gen 2 support, 2 x USB4 USB Type-C ports (DisplayPort (Note)), 3 x USB 3.2 Gen 1 ports

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

IDE Port

SATA Port

Thunderbolt

TPM Port

Yes

Technical Info

Arka Bağlantı Tasarımı

HAYIR

Cable Management

Front

Heatsink

Yes

CrossFire Support

Sli Support

Raid Support

RAID 0, RAID 1, RAID 5, and RAID 10 (support for NVMe SSD storage devices), RAID 5 is only available on AMD Ryzen 9000 Series Processors, RAID 0, RAID 1, and RAID 10 (support for SATA storage devices)

RGB Support

ARGB

RGB Sync

RGB FUSION

RGB Connector

3 x addressable RGB Gen2 LED strip headers, 1 x RGB LED strip header

Approx. Power Consumption

70W

Form Factor

ATX

Bios Information

BIOS Türü

1 x 512 Mbit flash

BIOS Model

AMI UEFI BIOS

BIOS Version

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Compatibility

Desteklenen İşletim Sistemi

Windows 11 64-bit

Compatible Products

AMD Ryzen 9000 Series Processors/ AMD Ryzen 8000 Series Processors/ AMD Ryzen 7000 Series Processors

Warranty

Garanti Detayları

Duyurulacak

Additional Info

Özellik

X3D Turbo Mode 2.0 : Incredible X3D performance unleashed by AI, DDR5 OC up to 9000MT/s, DriverBIOS : Wi-Fi Driver Pre-install, Power-On & EZ to Launch the Network. AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors, Digital twin 18+2+2 phases VRM solution, Dual Channel DDR5 : 4 DIMMs with AMD EXPO Memory Module Support, M.2 EZ-Flex : high-efficiency heat dissipation & flexible patented baseplate for M.2 SSD, WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation, M.2 EZ-Latch Click & Plus : Quick Release & Screwless Design on M.2 slots and heatsinks, Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW, Ultra-Fast Storage : 4 x M.2 slots, including PCIe 5.0 x4, PCB Thermal Plate : 14% thermal improvement and reinforced motherboard stability. Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard L & M.2 Thermal Guard Ext. Fast Networking : 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna. Extended Connectivity : HDMI, Dual USB4 Type-C with DP-Alt, Front QC-USB 65W. PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card.

Others

Wireless Communication module: Qualcomm Wi-Fi 7 QCNCM865, 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands, BLUETOOTH 5.4 Support for 11be 320MHz wireless standard, H/W Monitoring: Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control.

Country Of Origin

Taiwan

Made in/ Assemble

China

Detaylar

Features of Gigabyte X870E AORUS PRO X3D ICE (Wi-Fi 7) Motherboard In Turkey

What is the price of Gigabyte X870E AORUS PRO X3D ICE (Wi-Fi 7) Motherboard In Turkey?

The price of Gigabyte X870E AORUS PRO X3D ICE (Wi-Fi 7) Motherboard not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy Gigabyte X870E AORUS PRO X3D ICE (Wi-Fi 7) Motherboard from our website or visit our showrooms nearby.
