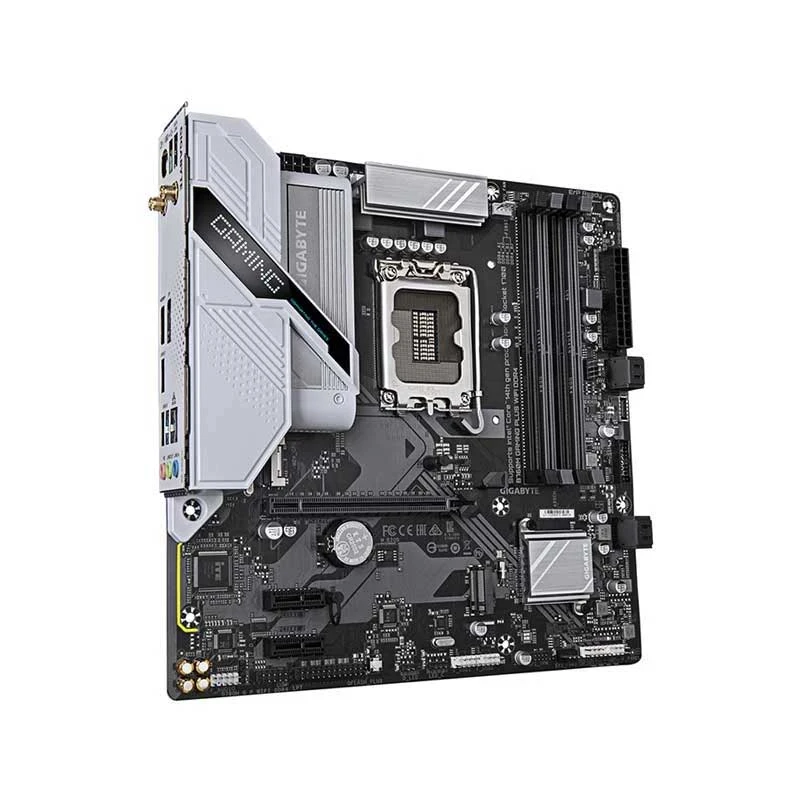

Gigabyte B760M GAMING PLUS (Wi-Fi 6) DDR4 Intel Anakart
2 x M.2 (1 x M.2, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU),(1 x M.2, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
M.2/SSD Slot Gen
Up to Gen 4
Graphics
Grafikler
Integrated
Graphics Chipset
Intel HD Graphics support
Multi-GPU Support
No
PCI Express Slot
1 x PCI Express x16 slot, 2 x PCI Express x1 slots
Audio & Video
Ses Çipseti
Realtek Audio CODEC High Definition Audio
Audio Channel
7.1
Network & Connectivity
LAN Çipseti
Realtek GbE LAN chip
LAN Speed (Mbps)
10/ 100/ 1000Mbps
WiFi
Yes
WiFi Technology
Wi-Fi 6
Bluetooth
Bluetooth 5.3
Ports
USB Bağlantı Noktası
2 x USB 2.0/1.1 ports, 3 x USB 3.2 Gen 1 ports
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
1
SATA Port
4
Thunderbolt
No
TPM Port
1
Technical Info
Arka Bağlantı Tasarımı
HAYIR
Cable Management
Front
Heatsink
No
FireWire
No
CrossFire Support
No
Sli Support
No
Raid Support
0, 1, 5, 10
RGB Support
RGB
RGB Connector
1 x RGB LED strip header
Approx. Power Consumption
60W
Form Factor
Micro-ATX
Bios Information
BIOS Türü
1 x 128 Mbit flash
BIOS Model
AMI UEFI BIOS
BIOS Version
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Compatibility
Desteklenen İşletim Sistemi
Windows 10, Windows 11
Compatible Products
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
Warranty
Garanti Detayları
3 yıl
Additional Info
Özellik
Supports Intel Core 14th/ 13th /12th processors, Unparalleled Performance: Hybrid 4+1+1 Phases Digital VRM Solution, Dual Channel DDR4: 4 x DIMMs XMP Memory Module Support, Next Generation Storage: 2 x PCIe 4.0 x4 M.2 Connectors, Fast Networks: Wi-Fi 6 802.11ax, GbE LAN, DP, HDMI, Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP, Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card
Others
Internal I/O Connectors: 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 3 x system fan headers, 1 x addressable LED strip header, 1 x RGB LED strip header, 2 x M.2 Socket 3 connectors, 4 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x USB Type-C header, with USB 3.2 Gen 1 support, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only), 1 x serial port header, 1 x parallel port header, 1 x S/PDIF Out header, 1 x Q-Flash Plus button, 1 x reset jumper, 1 x Clear CMOS jumper, I/O Controller: iTE I/O Controller Chip, H/W Monitoring: Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control, Unique Features: Support for GIGABYTE Control Center (GCC), Support for Q-Flash, Support for Q-Flash Plus
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Görsel, ürünün gerçek düzeni, rengi, boyutu ve ölçülerinden farklılık gösterebilir. Görsel uyumsuzluğu nedeniyle herhangi bir talep kabul edilmeyecektir. Bu web sitesinde kullanılan ürün verileri yalnızca üretici tarafından sağlanan bilgilere dayanmaktadır; orijinalliği ve doğruluğu yalnızca üreticinin sorumluluğundadır.
Detaylar
SORU & CEVAP
Müşteri Soruları
Q:
Does it support dual SSD?
Asked By Mamun
A:
Dear Customer , Yes , This model has two SSD slot . M.2/SSD Expansion Slot - 2 Thank You .
Answered By RYANS TEKNOLOJI Ltd.
, 25 Jun 2025
Q:
Can I add extra graphics card with this Motherboard?
Asked By
A:
Dear Customer , Yes, you can use an extra graphics card on this motherboard. Thank You .
