14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors.
Generation
12th/13th/14th
Memory Support
Bellek Türü
DDR5
Memory MHz
5600/5200/4800/4400 MHz ECC Un-buffered DIMM
Memory Channel
Dual
Memory Slot
4
Memory Slot (Additional Info)
Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Memory Max.
256GB
Optane Memory Support
No
Storage
Depolama Arayüzü
6.0 Gb/s
M.2/SSD Expansion Slot
2
M.2/SSD Expansion Slot Details
2 x M.2 Slot (1 x M.2 connector Socket 3, M key, type 2280 support PCIe 4.0 x4/x2 SSD, 1 x M.2 connector Socket 3, M key, type 2280 support PCIe 4.0 x4/x2 SSD)
M.2/SSD Slot Gen
Up to Gen 4
Graphics
Grafikler
Integrated
Graphics Chipset
Integrated With Processor
Multi-GPU Support
No
PCI Express Slot
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16, 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1.
Audio & Video
Ses Çipseti
Realtek High Definition Audio CODEC
Audio Channel
2/4/5.1/7.1
Network & Connectivity
LAN Çipseti
Realtek 2.5GbE
LAN Speed (Mbps)
Realtek 2.5GbE
WiFi
Yes
WiFi Technology
Intel Wi-Fi 6E AX210
Bluetooth
Bluetooth 5.3
Ports
USB Bağlantı Noktası
2 x USB 2.0/1.1 Type-A, 3 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 2 Type-C
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
2
IDE Port
No
SATA Port
4 x SATA
Thunderbolt
No
TPM Port
Yes
COM Port
No
Technical Info
Arka Bağlantı Tasarımı
HAYIR
Cable Management
Front
Heatsink
Yes
FireWire
No
CrossFire Support
No
Sli Support
No
Raid Support
0 , 1 , 5, 10
RGB Support
ARGB
RGB Sync
RGB Fusion
RGB Connector
2 x addressable RGB Gen2 LED strip headers, 1 x RGB LED strip header
Approx. Power Consumption
60W
Form Factor
Micro-ATX
Bios Information
BIOS Türü
1 x 128 Mbit flash
BIOS Model
AMI UEFI BIOS
BIOS Version
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Compatibility
Desteklenen İşletim Sistemi
Windows 10 / 11
Compatible Products
Compatible with LGA1700 Socket 12th, 13th & 14th Gen Intel Processor.
Warranty
Garanti Detayları
3 yıl
Additional Info
Diğerleri

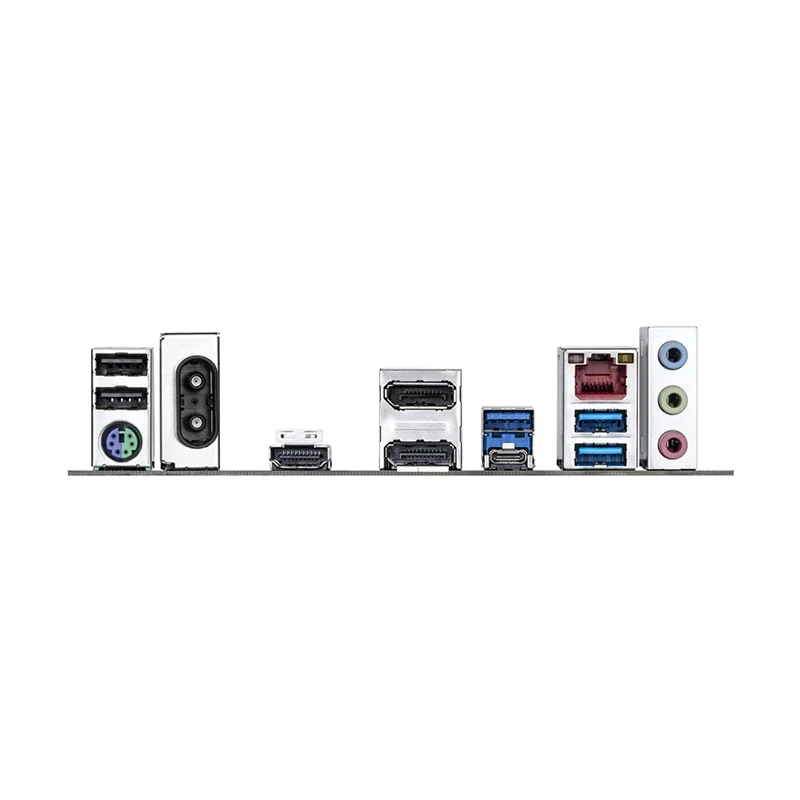

Internal I/O Connectors: (1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper), Back Panel Connectors: (1 x PS/2 keyboard/mouse port 2 x antenna connectors (2T2R) 1 x RJ-45 port 3 x audio jacks).
Country Of Origin
Taiwan
Made in/ Assemble
China
