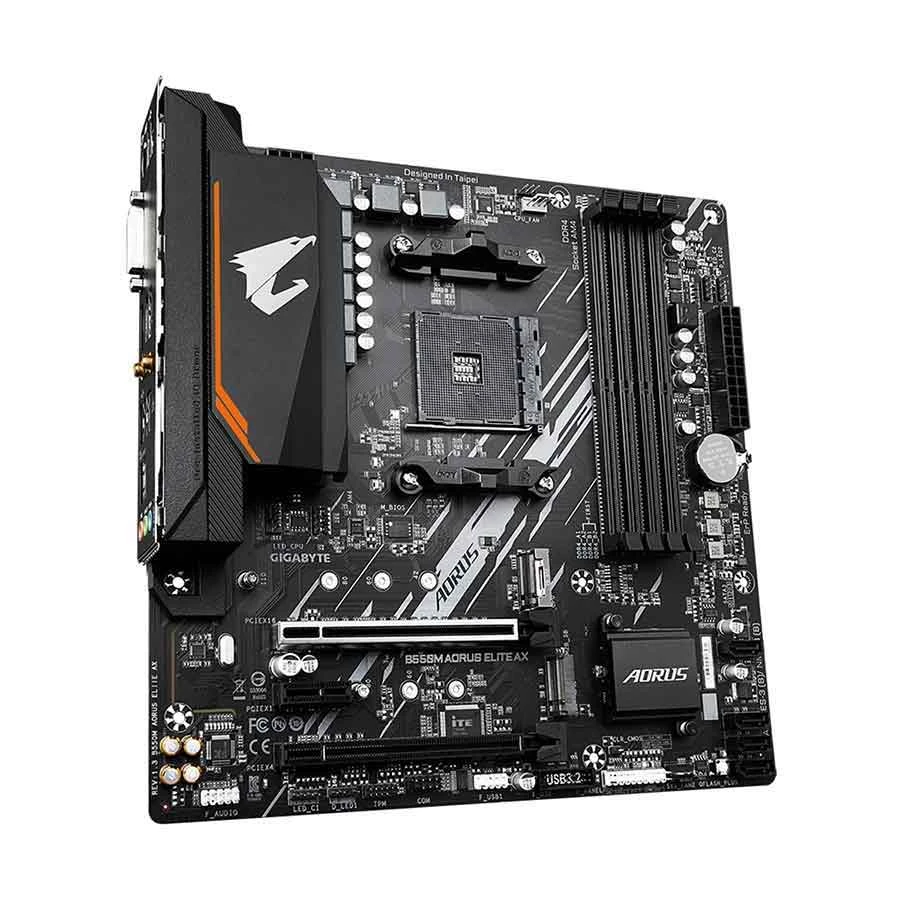

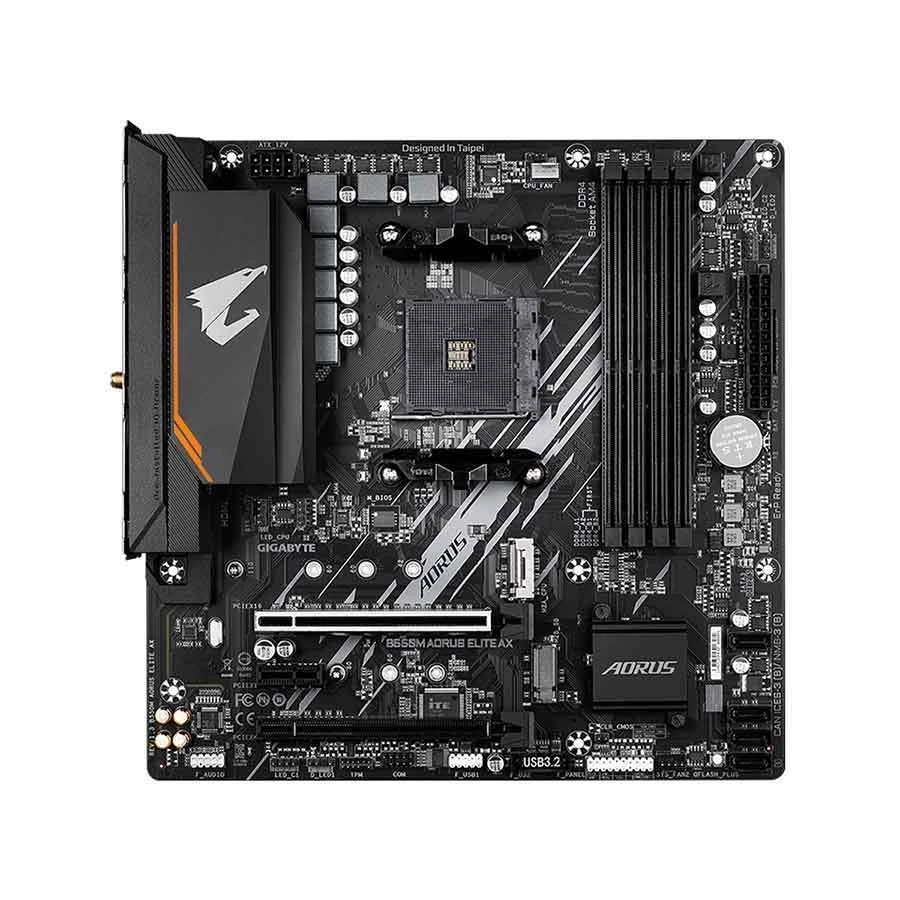

Gigabyte B550M AORUS ELITE AX (Wi-Fi 6E) DDR4 AMD Oyun Anakartı

Item: Gigabyte B550M AORUS ELITE AX (Wi-Fi 6E) DDR4 AMD Gaming Motherboard
Rating: 5
Author: Verified Buyer

9 reviews

Ürün Kimliği: 02.02.018.11

Normal Fiyat

TL 0

Hızlı Genel Bakış

Marka

Gigabyte

Model

Gigabyte B550M AORUS ELITE AX

Çipset

AMD B550

Desteklenen Soketler

AM4

Dahili İşlemci

HAYIR

Nesil

Uygulanamaz

Arka Bağlantı Tasarımı

HAYIR

Bellek Türü

DDR4

Hafıza Yuvası

Maksimum Bellek.

128 GB

Optane Bellek Desteği

HAYIR

Grafikler

Integrated

Grafik Çipseti

Integrated with Processor

M.2/SSD Genişletme Yuvası

Wifi

Yes

Bluetooth

BLUETOOTH 5.3

Şekil Faktörü

Micro-ATX

Desteklenen İşletim Sistemi

Windows 10 / 11 64-bit

Vücut Rengi

Black

Garanti Detayları

3 yıl

General

Marka

Gigabyte

Model

Gigabyte B550M AORUS ELITE AX

Body Color

Black

CPU

Çipset Markası

AMD

Chipset

AMD B550

Sockets Supported

AM4

Built-in Processor

Supported CPU

AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series Processors.

Generation

Not Applicable

Memory Support

Bellek Türü

DDR4

Memory MHz

4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz ECC, non-ECC Un-buffered DIMM

Memory Channel

Dual

Memory Slot

Memory Slot (Additional Info)

4 x DDR4

Memory Max.

128GB

Optane Memory Support

Storage

Depolama Arayüzü

6.0 Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

2 x M.2 Slot (1 x M.2 connector(M2A_CPU), M key, type 2242/2260/2280/22110 SSDs, 1 x M.2 connector (M2B_SB), M key, type 2242/2260/2280 SSDs).

M.2/SSD Slot Gen

Up to Gen 4

Graphics

Grafikler

Integrated

Graphics Chipset

Integrated with Processor

PCI Express Slot

1 x PCI Express x16 slot (PCIEX16), 1 x PCI Express x16 slot (PCIEX4), 1 x PCI Express x1 slot (PCIEX1)

Audio & Video

Ses Çipseti

Realtek Audio CODEC

Audio Channel

2/4/5.1/7.1

Network & Connectivity

LAN Çipseti

Realtek GbE LAN chip (1 Gbps/100 Mbps)

LAN Speed (Mbps)

0/100/1000Mbps

WiFi

Yes

WiFi Technology

Realtek Wi-Fi 6E RTL8852CE

Bluetooth

BLUETOOTH 5.3

Ports

USB Bağlantı Noktası

4 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

SATA Port

Thunderbolt

Technical Info

Arka Bağlantı Tasarımı

HAYIR

Cable Management

Front

Heatsink

CrossFire Support

Sli Support

Raid Support

0 , 1 , 10

RGB Support

RGB

RGB Sync

RGB FUSION 2.0

RGB Connector

2 x RGB LED strip headers, 1 x CPU cooler LED strip/RGB LED strip header

Approx. Power Consumption

60W

Form Factor

Micro-ATX

Bios Information

BIOS Türü

1 x 128 Mbit flash

BIOS Model

AMI UEFI BIOS

BIOS Version

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Compatibility

Desteklenen İşletim Sistemi

Windows 10 / 11 64-bit

Compatible Products

AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series Processors.

Warranty

Garanti Detayları

3 yıl

Additional Info

Özellik

Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs, 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs, Ultra Durable PCIe 4.0 Ready x16 Slot, Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors, High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality, Realtek GbE LAN with Bandwidth Management, RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips, Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.

Others

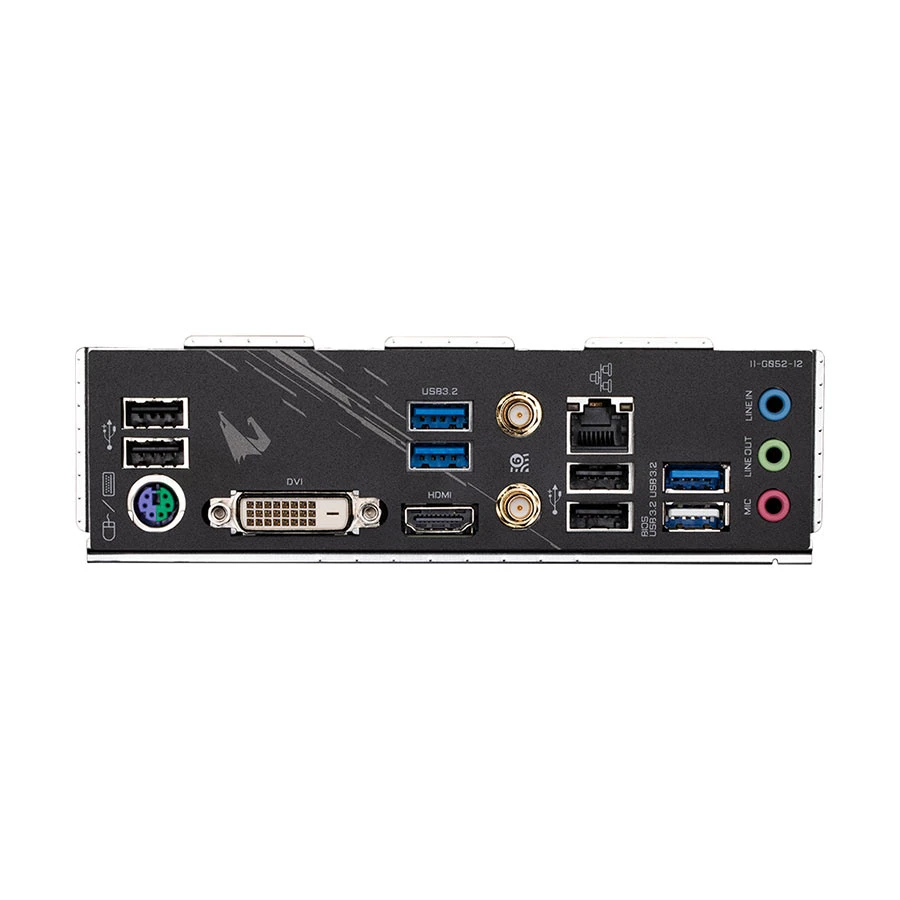

1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz, 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands. Internal I/O Connectors - 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 2 x system fan headers, 2 x addressable LED strip headers, 2 x RGB LED strip headers, 1 x CPU cooler LED strip/RGB LED strip header, 2 x M.2 Socket 3 connectors, 4 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x USB 3.2 Gen 1 header, 1 x USB 2.0/1.1 header, 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only), 1 x serial port header, 1 x Clear CMOS jumper, 1 x Q-Flash Plus button. Back Panel Connectors - 1 x PS/2 keyboard/mouse port, 1 x DVI-D port, 1 x HDMI port, 2 x SMA antenna connectors (2T2R), 4 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports, 1 x RJ-45 port, 3 x audio jacks. I/O Controller - iTE I/O Controller Chip.

Country Of Origin

Taiwan

Made in/ Assemble

China

Detaylar

Features of Gigabyte B550M AORUS ELITE AX Motherboard In Turkey

Gigabyte B550M AORUS ELITE AX (Wi-Fi 6E) DDR4 AMD Gaming Motherboard

Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
Ultra Durable PCIe 4.0 Ready x16 Slot
Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors
Onboard Wi-Fi 6E 802.11ax & BT 5.3
High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
Realtek GbE LAN with Bandwidth Management
Rear HDMI & DVI Support
RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Anti-Sulfur Resistors Design

What is the price of Gigabyte B550M AORUS ELITE AX Motherboard In Turkey?

The price of Gigabyte B550M AORUS ELITE AX Motherboard not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy Gigabyte B550M AORUS ELITE AX Motherboard from our website or visit our showrooms nearby.
Looking to purchase office, corporate, or institutional equipment? RYANS TEKNOLOJI is here to help. We provide customized solutions tailored to your needs, backed by fast delivery and dependable after-sales service. Our expert Ryans Care team is always ready to support you with troubleshooting, technical assistance, and configuration services—so you can focus on what matters most.

SORU & CEVAP

Müşteri Soruları

Windows 1164bit er mane ki? Er fole ki performance ki kom hobe?

Asked By Rudro

উইন্ডোজ ১১ ৬৪ বিট একটি আধুনিক এবং শক্তিশালী অপারেটিং সিস্টেম যা উন্নত পারফরম্যান্স এবং মেমরি ব্যবস্থাপনা প্রদান করে। ৩২ বিটের তুলনায় ৬৪ বিটের প্রসেসরে আপনি বেটার পারফরম্যান্স পাবেন

Answered By RYANS TEKNOLOJI Ltd. , 08 Aug 2024

I/O sheild কি এর সাথে দেওয়া হবে?

Asked By Muhammad Al Mustakim

প্রিয় গ্রাহক, জি I/O শিল্ড সাথে দেওয়া হবে।

Answered By RYANS TEKNOLOJI Ltd. , 30 May 2024

Can i use 16gb x 2 ram sticks on this motherboard?

Asked By lili

Dear Sir, Yes! You can use 16GB x 2 Ram stick on this motherboard, Thanks for your query!

Answered By RYANS TEKNOLOJI Ltd. , 27 Jan 2024
