Features of Gigabyte A520 AORUS ELITE Motherboard In Turkey

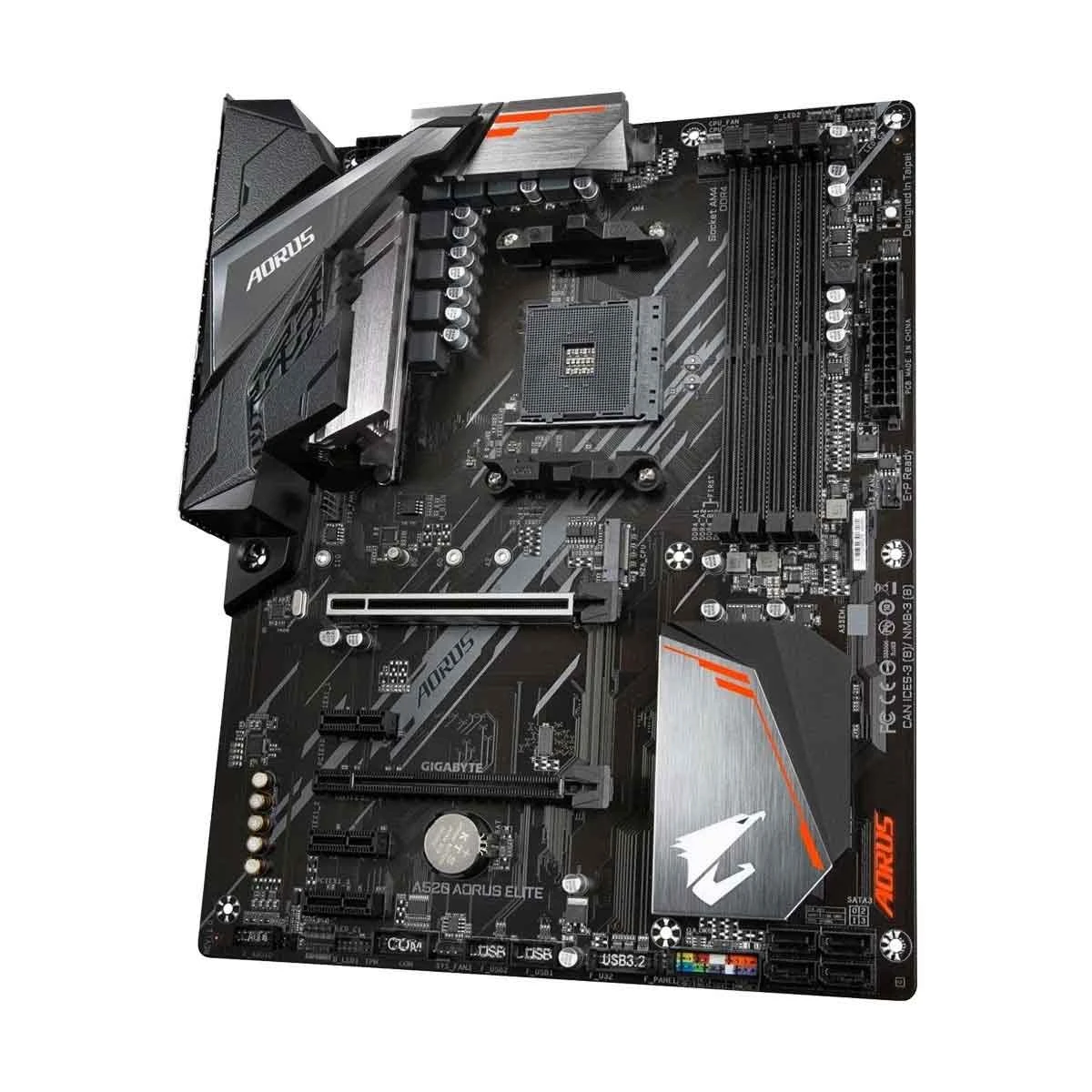

Gigabyte A520 AORUS ELITE

AMD A520 AORUS Motherboard with Pure Digital VRM Solution, ALC1200 Audio, GIGABYTE Gaming LAN with Bandwidth Management, PCIe 3.0 x4 M.2, RGB FUSION 2.0, Smart Fan 5, Q-Flash Plus, Pre-installed IO Shield Design

• Supports AMD Ryzen 5000 Series / 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors
• Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
• 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
• Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector
• AMP-UP Audio with ALC1200 and High End Audio Capacitors
• GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management

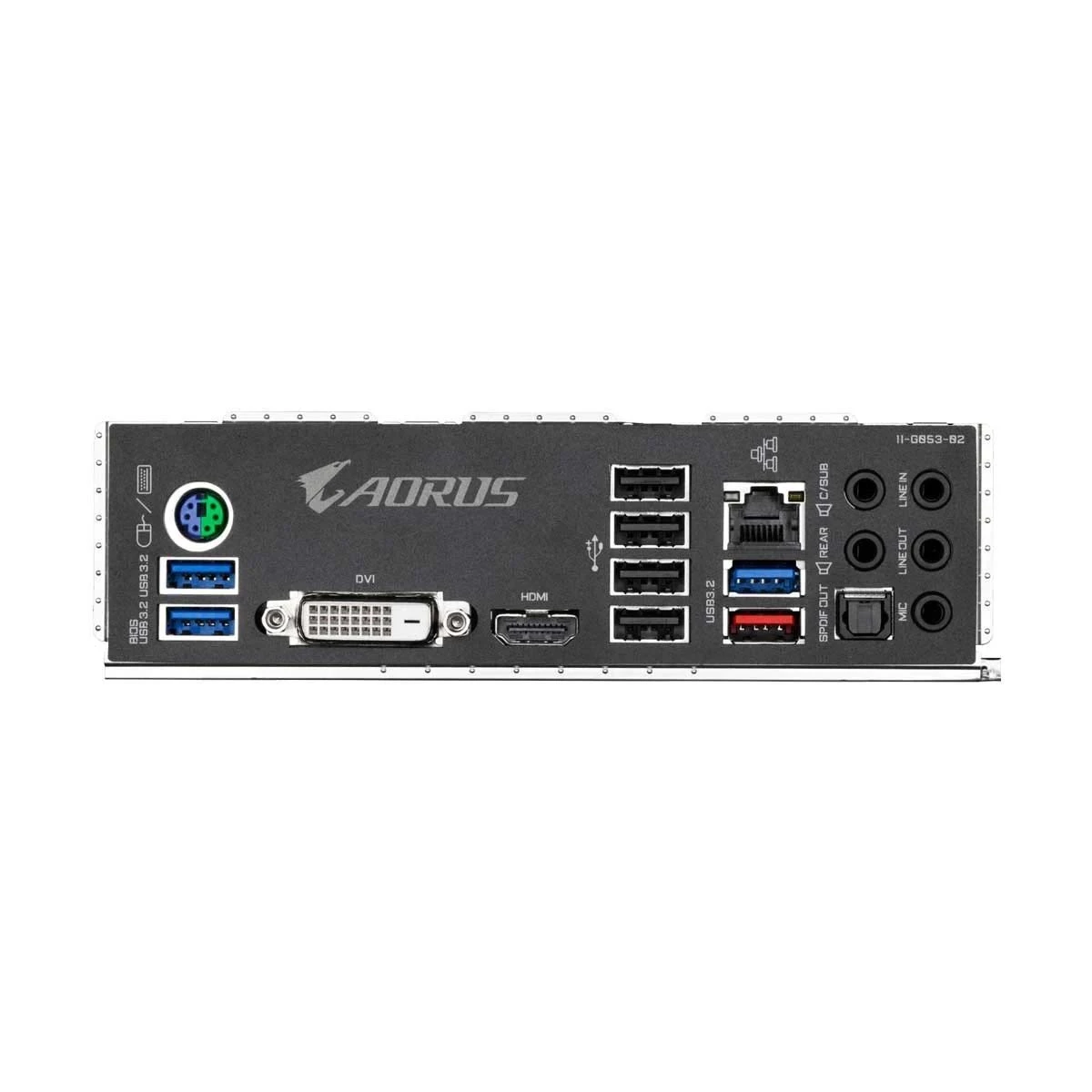

• HDMI, DVI-D Ports for Multiple Display
• RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
• Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
• Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
• Pre-installed IO Shield for Easy and Quick Installation

DESIGN CONCEPT

FEROCIOUS TALONS

5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs

GIGABYTE AORUS series motherboards use a 5+3 phases pure digital PWM + Low RDS(on) MOSFETs design to support the 3rd Gen AMD Ryzen™ CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.

Benefits of Lower RDS(on) MOSFETs

• Optimized gate charge to minimize switching losses.
• Lower temperature, smaller size, better thermal characteristics.

NVMe PCIe 3.0 x4 M.2 Connector (Up to 32 GB/s)

AORUS Gaming Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential.

The Industry's Leading LAN Static-Electricity & Surge Protection

GIGABYTE motherboards use ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard and its components against potential damage caused by static electricity. GIGABYTE motherboards also feature special anti-surge ICs that protect your motherboard and your PC from any surge in power delivery that may occur, ensuring that your PC is equipped to deal with any potentially irregular and inconsistent power delivery.

Exclusive Realtek 8118 Gaming LAN

High Speed Gigabit LAN with Automatic Bandwidth Allocation

Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.

HDMI 2.1 for 4K / 60P / 21:9 / HDCP 2.3 Support

HDMI 2.1, which is backwards compatible with HDMI 2.0/ 1.4 and offering 48 Gb/s of bandwidth – twice times more than previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), Full HDR and HDCP 2.3 support, to offer the best visual experience for viewers.

Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

Fan / Water Pump Connectors

Internal Temperature Sensors

Temperature Sensors

Hybrid Fan Headers

■ 5 Fan / Water Pump Connectors
■ 6 Temperature Sensors
■ All Fan Pin Headers Upgraded to Hybrid Fan Headers
■ Interoperable Fans and Sensors
■ Intuitive UI for Fan Control

Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.

Intelligent Fan Control Design

Hybrid Fan Pin Headers

Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate through the Hybrid Fan Pin Headers—giving you absolute mastery over your PC.
All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.

New Smart Fan 5 Software

Choose from different modes, Quiet to Full Speed, to match your system usage preferences.
For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.

Multi-Zone Light Show Design

Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.

Note: Lighting effects depicted are for demonstration purposes only. Actual lighting effects may vary by model.

• Static Pulse Flash Double Flash Music
•
• Random Game Digital A Digital BDigital C

Brand - Gigabyte, Model - Gigabyte A520 AORUS ELITE, Chipset Brand - AMD, Chipset - AMD A520, CPU Sockets - AM4, Supported CPU - AMD Ryzen 5000 Series/ AMD Ryzen 3rd Generation Processors with Radeon Graphics processors, Memory Type - DDR4, Memory MHz - AMD Ryzen 5000 series (4266(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133MHz), AMD Ryzen 3rd Gen (4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133MHz), AMD Ryzen 3rd Gen with Radeon Graphics (4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133MHz), Memory Channel - Dual Channel, Memory Slot - 4, Memory Max. - 128GB, Optane Memory Support - No, Graphics - Integrated, Graphics Chipset - Integrated With Processor, Multi-GPU Support - No, PCI Express Slot - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16) / 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2), 3 x PCI Express x1 slots, supporting PCIe 3.0 (PCIEX1_1, PCIEX1_2, PCIEX1_3), Storage Interface - 6Gb/s, M.2 Slot - 1 x M.2 Socket 3 (M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support), LAN Chipset - Realtek GbE LAN, LAN Speed (Mbps) - 100/1000, Audio Chipset - Realtek ALC1200, Audio Channel - 2/4/5.1/7.1-channel, Wi-Fi - No, Bluetooth - No, USB Port - 1 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1, 6 x USB 2.0, VGA Port - No, DVI Port - 1, HDMI Port - 1, DisplayPort (DP) - No, IDE Port - No, SATA Port - 4 x SATA, BIOS Type - 1 x 128 Mbit Flash, BIOS Model - AMI UEFI BIOS, BIOS Version - PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0, FireWire - No, CrossFire Support - No, Sli Support - No, RaidSupport - 0,1,10, Thunderbolt - No, TPM Port - Yes, COM Port - No, RGB Support - RGB, RGB Sync - RGB FUSION 2.0, RGB Connector - 2 x RGB LED strip headers, Power Consumption - 65W, Form Factor - ATX, Supported Operating System - Windows 10, Special Features - AMD A520 AORUS Motherboard with Pure Digital VRM Solution, ALC1200 Audio, GIGABYTE Gaming LAN with Bandwidth Management, PCIe 3.0 x4 M.2, RGB FUSION 2.0, Smart Fan 5, Q-Flash Plus, Pre-installed IO Shield Design, Supports 3rd Gen AMD Ryzen Processors, Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs, 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs, Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector, AMP-UP Audio with ALC1200 and High End Audio Capacitors, GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management, HDMI, DVI-D Ports for Multiple Display, RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips, Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP, Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card, Others - 1 x CPU fan header, 1 x water cooling CPU fan header, 3 x system fan headers, 2 x addressable LED strip headers, 1 x front panel header, 1 x front panel audio header, 1 x Trusted Platform Module (TPM) header, 1 x serial port header, 1 x Clear CMOS jumper, 1 x Q-Flash Plus button, 1 x optical S/PDIF Out connector, 5 x audio jacks, Warranty - 3 Year, Country of Origin - Taiwan, Made in/ Assemble - China

What is the price of Gigabyte A520 AORUS ELITE Motherboard In Turkey?

The price of Gigabyte A520 AORUS ELITE Motherboard starts from 4,569 . The price may vary due to your customization and product availability. You can buy Gigabyte A520 AORUS ELITE Motherboard from our website or visit our showrooms nearby.
