ZKTeco SenseFP M1 Fingerprint Black Time Attendance & Access Control Terminal with Wi-Fi
DST, Up to 14-digit User ID, Record Query, Automatic Status Switch, Multiple Authentication Methods, T9 Keyboard (Input), Online Firmware Upgrade
Display
Yes
Display Size (Inch)
2.8
Fingerprint Sensor
2.8 Inch @ TFT Color LCD Screen (320 x 240)
Camera
No
Fingerprint Capacity
500
Face Capacity
No
Logs Capacity
Unmentioned
ID Card Capacity
500
User Capacity
500PCS
Power Supply
DC 5V 2A
Dimensions
135.5 x 118.23 x 35.95mm
Weight (Kg)
0.485 Kg
Color
Black
Warranty Details
1 Year (Without Adapter)
General
Brand
ZKTeco
Model
ZKTeco SenseFP M1
Type
Access Control
Technical Info
Standard Function
DST, Up to 14-digit User ID, Record Query, Automatic Status Switch, Multiple Authentication Methods, T9 Keyboard (Input), Online Firmware Upgrade
Optional Function
IC Card
Time Attendance
Yes
Display
Yes
Display Size (Inch)
2.8
Display Details
2.8 Inch @ TFT Color LCD Screen (320 x 240)
Main Features
Fingerprint Sensor
2.8 Inch @ TFT Color LCD Screen (320 x 240)
Camera
No
Fingerprint Capacity
500
Face Capacity
No
Logs Capacity
Unmentioned
ID Card Capacity
500
User Capacity
500PCS
Interface
Communication Interface
Wi-Fi (IEEE802.11b/g/n) @ 2.4 GHz, USB: Type Ax1 (to import data for a firmware upgrade only)
Software
Algorithm Version
ZKFingerprint V13.0
SDL/Software
Mobile App.: ZKBio Zlink, Cloud-based Software: ZKBio Zlink
Authentication
Fingerprint / Card / Password (Physical Keypad)
Operating System
Linux
Power Info
Power Supply
DC 5V 2A
Operating Temperature
0 Degree C to 45 Degree C
Operating Humidity
20% to 80% RH (Non-condensing)
Physical Description
Dimensions
135.5 x 118.23 x 35.95mm
Weight (Kg)
0.485 Kg
Color
Black
Warranty
Warranty Details
1 Year (Without Adapter)
Additional Info
Feature
Intuitive user interface with a 2.8 inch TFT color LCD display and 16 physical buttons. Multiple Authentication Methods: Fingerprint (ZKFingerprint V13.0 algorithm) / RFID card / Password. Supports up to 500 users capacity with 500 fingerprint templates and 500 RFID card capacity. Available RFID Modules:125 kHz ID Card (standard) / 13.56 MHz IC Card (optional). Connect to Wi-Fi (IEEE802.11b/g/n) @ 2.4 GHz). Support Online Firmware Upgrade.
Others
Hardware: RAM: 8MB; ROM: 16MB, Speaker: 8ohm @1W, Physical Keypad: 16 Keys, Transaction Capacity 100,000 (1:N) (Standard), Max. User Password Length 6 Digits, Biometric Authentication Speed less than 1.5 sec (Fingerprint), False Acceptance Rate (FAR) % FAR < 0.0001% (Fingerprint), False Rejection Rate (FRR) % FRR <0.1%(Fingerprint), Biometric Algorithm ZKFingerprint V13.0, Card Type ID Card@125 kHz (Standard), IC Card@13.56 MHz (Optional), Installation: Wall-mount (Compatible with Asian Gang-box / Single Gang-Box), Certifications: ISO14001, ISO9001, CE, FCC, RoHS.
Country Of Origin
China
Made in/ Assemble
China
N.B. Specification may differ
with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Video

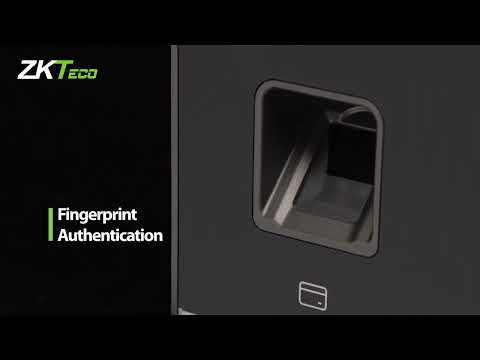

ZKTeco Advanced & Latest Time Attendance Series for SME's | SenseFP Series
