NZXT H3 Flow Mesh Mid Tower Black (Tempered Glass Window) Micro-ATX Gaming Desktop Case #CC-H31FB-01
Up to 377 mm (without front fans), Up to 352 mm (with front fans), Up to 317 mm (with front radiator and fans)
Supported CPU Cooler
Air Cooler or Liquid Cooler
CPU Cooler Height
170mm
PSU Length
185mm
Ports & Slots
Front/Top USB port
1 x USB 3.2 Type-A
Front/Top Audio Port
1 x USB 3.2 Gen2x2 Type-C
3.5 Inch Drive Bay
1
2.5 Inch Drive Bay
1
Expansion Slots
4
Optical Drive Bay
No
Memory Card Slot
No
Fan & Radiator Details
Cooling Fan (Built-In)
1
Additional Fan Slot
6
Pre-Installed Fan Size
120mm
Supported Fan Size
Front: 2 x 120 mm / 2 x 140 mm, Top: 2 x 120 mm / 2 x 140 mm, Bottom: 2 x 120 mm, Rear: 1 x 120 mm
Lighting Fan
No
Radiator Support Front/Top/Rear
Front: Up to 280 mm, Top: Up to 240 mm
Radiator Support Max.
Up to 280mm
Power
Power Supply (Built-In)
No
Power Supply Mounted
Bottom
Approx. Power Consumption
5W
Physical Description
Transparent Side Window
Yes
Case Windowed
Tempered Glass Window
Buttons
1 x Power Button
Number of Buttons
1
Material
SGCC steel, tinted tempered glass (black)
Dust Cover
Top
Color
Black
Dimensions
400 x 389 x 225mm
Weight (Kg)
4.8 kg
Handle
No
Warranty
Warranty Details
No warranty
Additional Info
Others
Front Radiator + Fan Thickness: Up to 63 mm, Top Radiator + Fan Thickness: Up to 70 mm, Fan Specs: Model: F120Q (CV), Speed: 1,350 +/- 150 RPM, Airflow: 60.2 CFM, Static Pressure: 1.05 mmH2O, Noise: 24.1 dBA, Fan Connector: 3-pin, Package content: H3 Flow x 1, Pre-installed F120Q (CV) x 1, Installation accessories x 1, User guide x 1
Specialty
Space-Saving Size: A space-efficient micro-ATX chassis that accommodates high-performance components without compromise. High-Airflow Design: Ultra-fine steel mesh panels and a ventilated PSU shroud maximize airflow while effectively filtering out dust. Extensive Cooling Support: Supports up to a 280 mm radiator in the front, a 240 mm radiator on top, and up to seven fans for powerful, customizable cooling performance. Full-Size GPU Support: Fits graphics cards up to 377 mm (without front fans), 352 mm (with front fans), or 317 mm (with front radiator and fans installed). Pre-Installed Rear Fan: Includes one F120Q (CV) fan at the rear to provide efficient exhaust airflow straight out of the box. CV = Case Version (3-pin DC) Simplified Cable Management: Integrated cable channels and multiple tie-down points make it easy to route and organize cables for a clean, organized build. Back-Connect Motherboard Compatible: Ready for rear-connector motherboards like ASUS BTF and MSI Project Zero, enabling a clean, cable-free aesthetic. Tool-Free Access: Removable top, front, and side panels allow for easy upgrades and cleaning no tools required.
Country Of Origin
USA
Made in/ Assemble
China
N.B. Specification may differ
with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Video

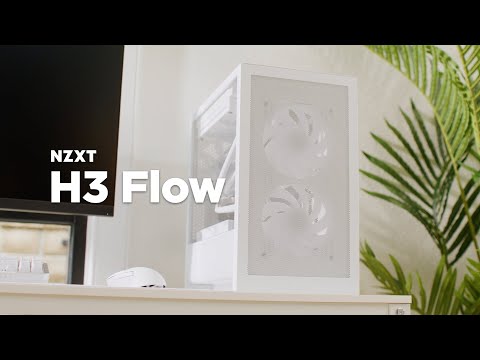

Introducing the all-new NZXT H3 Flow micro-ATX case!
